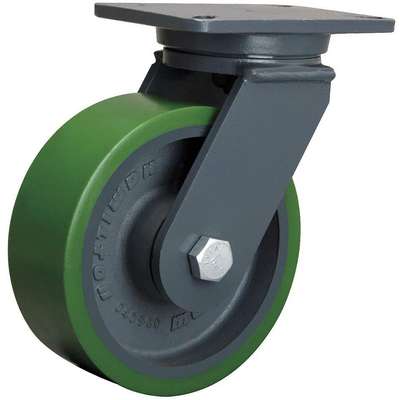

Standard Plate Caster, Swivel, Polyurethane, 2500 lb., 8" Wheel Dia.

Hover over image to magnify
Plte Caster,Swvl,Poly,8 In.,
PI_Asset_928481
PI_Asset_947818
Plte Caster,Swvl,Poly,8 In.,
PI_Asset_928481
PI_Asset_947818

#920622-8 | Pkg Qty: 1

$253.08 pkg | $253.08 ea
Item Number 920622-8
Scanner Description Plte Caster,Swvl,Poly,8 In.,
Inventory Status Drop Ship Item
Weight 32 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
All Purpose Industrial and Commercial Casters, Casters, Aerospace Tooling, Automotive Assembly Lines, Body Dolly Carts, Engine Dollies, Material Carts, Chassis Rack Carts
Frame Finish
Enamel
Brand
APPROVED SUPPLIER
Includes
Spanner Bushing
Caster Brake Included
No
Inside Bolt Hole Spacing
3-3/8 in. x 5-1/4 in.
Caster Core Material
Cast Iron
Item
Plate Caster
Caster Group
Swivel Caster
Load Rating
2500 lb.
Caster Load Rating Range
Medium Duty
Mfr. Part Number
S-CH-83DB
Caster Maximum Temperature
200°F
Non-Marking
Yes
Caster Minimum Temperature
-40°F
Number of Wheels
1
Caster Plate Hole Pattern
A
Outside Bolt Hole Spacing
4-1/8 in. x 6-1/8 in.
Caster Plate Size
5-1/4 in. x 7-1/4 in.
Overall Height
10-1/2 in.
Caster Raceway
Single Ball
Pack Quantity
1
Caster Swivel Lock Type
No Lock Included
Plate Caster Sub-Type
Swivel
Caster Temperature Range Available
Yes
Plate Size
5-1/4 in. x 7-1/4 in.
Caster Wheel Bearings
Ball
Replacement Wheel
4DU71
Caster Wheel Shape
Standard
Standards
ICWM
Caster Wheel/Tread Material
Polyurethane
Wheel Color
Green
Core Color
Gray
Wheel Color Family
Green
Durometer
90 Shore A
Wheel Diameter
8 in.
Features
Floor Protective
Wheel Width
3 in.

Product Description

Polyurethane Wheel Casters on Cast-Iron Core Casters with directional lock feature thumbscrew brake. Forged-Steel Frame Casters Precision ball raceway, except Part Numbers: 5VH73, 5VH74, 5VH75, and 5VH83 which have hardened precision roller. Include spanner bushing.

Item Barcode
9206228
  Name Item Description
Grainger Dropship Grainger Dropship 5VH10 Plte Caster, Swvl,Poly,8
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Plte Caster, Swvl,Poly,8
