DAYTON

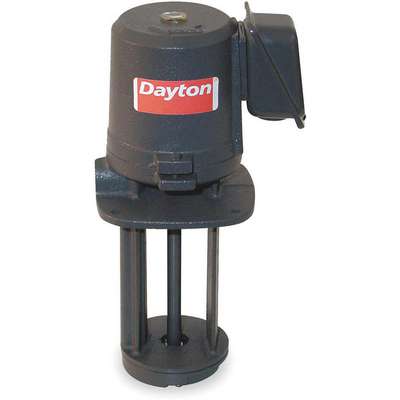

Oil Coolant Pump: 1/8 hp HP, 3 Phase, 230/460, 6 in Max. Immersion Dp (In.), Plastic, 500 SSU
#920619-9 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
Amps
.32 .19 A
Maximum Recommended Viscosity
500 SSU
Body Material
Cast Iron
Mfr. Part Number
3GRV6
Bolt Circle Diameter
5 in.
Motor Enclosure
TENV
Brand
DAYTON
Package Quantity
1
Discharge Port
3/8
Phase
3
GPM of Water @ 10 Ft. of Head
5
RPM
3450
GPM of Water @ 5 Ft. of Head
9
Shaft Material
Carbon Steel
Horsepower
1/8
Shipping Weight
13.4 lb.
Impeller Material
Plastic
Shut-Off
13 ft.
Item
Oil Coolant Pump
Type
Immersion
Maximum Immersion Depth
6
Voltage
230/460
General
Application
Circulation of Coolant, Spraying of Cutting Oil in all Types of Machines, Including Grinders
For Use With
Nonflammable Liquids Compatible with Pump Component Materials
Compatible Discharge Pipe Size
3/8 in
Immersion Depth (Maximum)
6 in
Compatible Intake Pipe Size
3/8 in
Intake Type
NPT
Compatible with Media Type
Liquid with Fine Contaminants
Intake and Discharge Size
3/8 in , 3/8 in
Discharge Type
NPT
Manufacturer Warranty Length
Limited Warranty
Feet of Head (Minimum)
2 ft
Maximum Feet of Head
13 ft
Flow Rate (Maximum, Water)
10 gpm
Maximum Media Temperature
180 Degrees F
Flow Rate @ 10 ft of Head (Maximum, Water)
5 gpm
Nameplate Voltage
230/460V AC
Flow Rate @ 5 ft of Head (Maximum, Water)
9 gpm
Pump Housing Material
Cast Iron
Product Description
Pump circulates coolant and spray cutting oil. Well-suited for pumping liquids with fine contaminants. Use with all types of machines, including grinders, and for higher-temperature applications.
