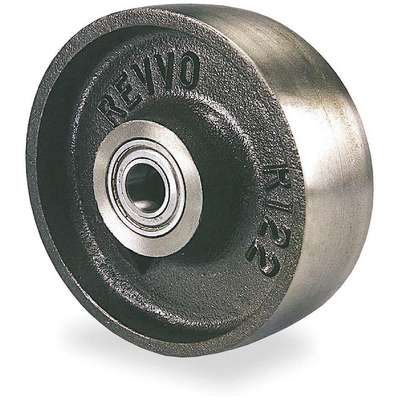

10" Caster Wheel, 2725 lb. Load Rating, Wheel Width 2-1/8", Cast Iron, Fits Axle Dia. 5/8"

Hover over image to magnify
Caster Wheel,Cast Iron,10 In.,
Caster Wheel,Cast Iron,10 In.,

#920619-3 | Pkg Qty: 1

$85.14 pkg | $85.14 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Item
Caster Wheel
Caster Core Material
Cast Iron
Load Rating
2725 lb.
Caster Load Rating Range
Medium Duty
Mfr. Part Number
250 CI1H
Caster Temperature Range
-50 deg. F to 572 deg. F
Non-Marking
No
Caster Temperature Range Available
Yes
Package Quantity
1
Caster Wheel Bearings
Roller
Replacement For
Revvo H Series Casters
Caster Wheel Shape
Standard
Shipping Weight
18.65 lb.
Caster Wheel/Tread Material
Cast Iron
Temperature Range
-50 deg. F to 572 deg. F
Core Color
Gray
Wheel Bearings
Roller
Core Material
Cast Iron
Wheel Color
Gray
Durometer
140 to 225 HB30
Wheel Diameter
10 in.
Fits Axle Diameter
5/8 in.
Wheel Material
Cast Iron
Hub Length
2-3/8 in.
Wheel Width
2-1/8 in.
General
Bore Dia.
63/64"
Load Rating Range
1,000 to 2,999 lb
Core Width
2 3/8 in
Tread Shape
Standard
Fits Axle Dia.
5/8 in
Wheel Bearing Type
Roller
For Axle Size
5/8 in
Wheel Core Material
Iron
Hub Width
2-3/8"
Wheel Dia.
10 in
Includes
Spanner Bushing
Wheel/Tread Hardness
145 BHN
Includes Spanner Bushing
Not Included
Wheel/Tread Material
Iron

Product Description

Iron tread wheels provide smooth rolling under heavy loads. They have excellent resistance to abrasion and shock, and they are suitable for rough surfaces such as concrete and wood block floors. Iron wheels withstand exposure to corrosive chemicals, grease, or oils better than steel. They also resist extreme temperatures. They are used in warehousing and manufacturing applications. Iron will rust if exposed to water, so these wheels are best suited for dry environments.

Metal tread wheels offer very high weight capacities and can withstand shock, abrasion, impact, rough use, and exposure to temperature extremes. The wheels' tread and core are manufactured as one piece from the same material. These wheels are suitable for use on carts, racks, trucks, trolleys, and similar equipment that will be carrying heavy loads over broken floors or debris. Metal tread wheels are heavier than wheels with rubber or plastic treads and are more likely to damage floors.
