LOCTITE

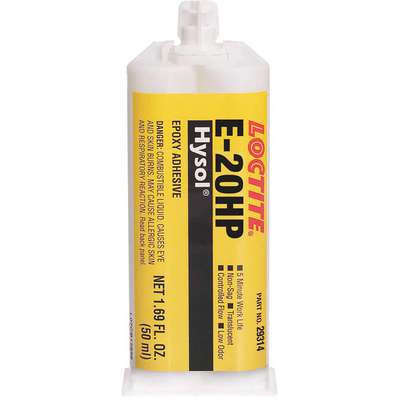

Loctite Epoxy Adhesive: E-20HP, Ambient Cured, 50 mL, Dual-Cartridge, Off-White, Thick Liquid

Hover over image to magnify
Adhesive,Epoxy,Hysol E-20HP,
Adhesive,Epoxy,Hysol E-20HP,

#920528-6 | Pkg Qty: 1

$30.80 pkg | $30.80 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Begins to Harden
20 min.
Net Weight
1.69 oz.
Brand
LOCTITE
Package Quantity
1
Color Family
White
Product Size
1.69 oz.
Container Type
Dual-Cartridge
Series
E-20HP
Epoxy Color
Tan
Shear Strength
3270 psi
Epoxy Maximum Temperature
250 to 299 deg. F
Shipping Weight
.15 lb.
For Use On
Ceramic, Glass, Masonry, Metal, Plastic
Structural Epoxy Adhesive Type
Epoxy Adhesive
Full Cure
24 hr.
Substrates
Metals, Thermoplastics, Thermoset Plastics, Glass, Ceramic, Masonry, Paper/Hardboard
Functional Cure
2 hr.
Temperature Range (Deg. F)
-65 to 250 deg. F
Item
Epoxy Adhesive
Type
High Strength, Toughened, High Peel/High Shear
Materials Bonded
Aluminum, Concrete, Metal, Nylon, Plastic, Polycarbonate, Stainless Steel, Wood
Work Life
20 min.
Mfr. Part Number
237107
Working Time
20 min.
Mixing Ratio
0.08402778
General
Alternate Product Name
Hysol E-20HP
Minimum Performance Temperature
-65 Degrees F
Application
For Bonding Glass, Masonry, Ceramic
Minimum Viscosity
30,000 cps
Compatible Applicator
720228; 267452; 476898
Non-Sagging
No
Compatible Applicator ( Part Number)
3NVL4
Primary Application
For General Purpose
Compatible Mixer Tip ( Part Number)
4UK16
Secondary Compatible Materials
Plastics, Metals, Wood, Concrete and Masonry
Consistency
Thick Liquid
Shear Strength Range
3001 to 4000 psi
Cure Method
Ambient
Total Volume
50 mL
Hardness at Full Cure
80 Shore D
Total Volume Range
50 mL
Included Components
Resin and Hardener
VOC Content Range
5 g/L to Under 10 g/L
Interior/Exterior
Interior Only
VOC Content Weight
Less Than 10 g/L
Low Odor
No
Water Resistance
Not Water-Resistant
Marine Grade
No
Working Time
20 min
Max Visc and Text Consistency
30,000 cps
Working Time Range
11 min to 25 min
Maximum Performance Temperature
250 Degrees F

Product Description

High Peel Resistance, High Shear Strength, Industrial Grade, Medium Viscosity
