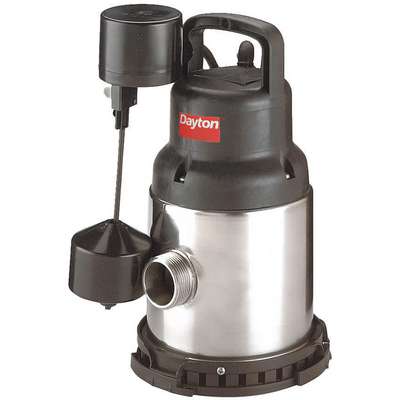

1/2 HP Submersible Sump Pump, Vertical Switch Type, Polypropylene Base Material

Zoom Icon
Secondary Item Image
9204362_LD
9204362_PC

#920436-2 | Pkg Qty: 1

$325.92 pkg | $325.92 ea
Item Number 920436-2
Scanner Description Sump Pump,1/2 Hp,1-1/4" NPT,10
Inventory Status Drop Ship Item
Weight 11.05 lb
Brand DAYTON

Technical Specifications

Alarm
No
Max. Diameter Solids
1/4 in.
Alarm Included
No
Max. Head
25 ft.
Amps
2.9
Max. Head - Pumps
25 ft.
Base Material
Polypropylene
Max. Liquid Temperature
104°F
Bearing Type
Lubricated Ball
Max. Temp. (F)
104
Brand
DAYTON
Mechanical Seal
Buna N
Cord Length
10 ft.
Mfg Part Number
3YU73
Cord Length - Pumps
10 ft.
Min. Sump Pit Dia.
12 in.
Diameter
9 in.
NEC Cord Designation
SJTW
Discharge NPT
1-1/4 in. M
Off Point
2-9/16 in.
Duty
Continuous
On Point
6-13/64 in.
GPM of Water @ 10 Ft. of Head
35
Pack Quantity
1
GPM of Water @ 15 Ft. of Head
25
Pump Body Material
Stainless Steel
GPM of Water @ 20 Ft. of Head
12
Pump HP
1/2
GPM of Water @ 5 Ft. of Head
42
Pump Type
Automatic
Gauge/Conductor
18/3
Shaft Material
Stainless Steel
HP (Horsepower)
1/2
Shaft Seal
Buna N
Height
12-7/8 in.
Shaft Seal Material - Pumps
Buna-N
Housing
Stainless Steel
Sump Pump Item
Submersible Sump Pump
Housing Material
Stainless Steel
Switch Type
Vertical
Hz
60
Switch Type - Pumps
Vertical
Impeller Material
Polyamide
Top Material
Polypropylene
Impeller Material - Pumps
Polyamide
Type
Automatic
Includes
90 Degrees 1 1/4 in. NPT Discharge Elbow
Voltage (V)
115
Item
Submersible Sump Pump
Voltage - Pumps
120VAC
Max. Dia. Solids
1/4 in.

Product Description

These 110V stainless-steel submersible sump pumps come with a stainless-steel body that is more corrosion resistant than cast iron and are commonly used to drain water in sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have an unpainted finish.
