TELEMECANIQUE SENSORS

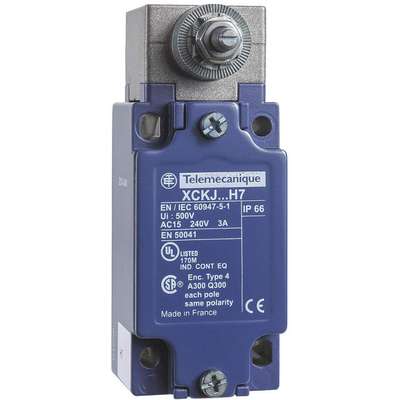

Telemecanique Sensors Rotary, No Lever Heavy Duty Limit Switch; Location: Side, Contact Form: 2NC/2NO, CW, CCW Movement
#920374-5 | Pkg Qty: 1
$221.12 pkg | $221.12 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 600 V
IP Rating
66
Actuator Location
Side
Item
Heavy Duty Limit Switch
Actuator Style
Rotary Head, No Lever
Limit Switch Style
Heavy Duty Limit Switch
Amperage
10 A
Mfr. Part Number
ZCKJ404H7
Basic Actuator Style
Rotary
Movement
CW, CCW
Body Depth
2.36 in.
NEMA Rating
1, 2, 4, 12, 13
Body Height
4.01 in.
Operating Force
2.21 in.-lb
Body Material
Zinc
Operating Temperature Range
-1 deg. F to 158 deg. F
Body Style
Standard
Package Quantity
1
Body Width
1.57 in.
Replacement Head
2EJ07
Boot Sealed Actuator
No
Series
Xckj
Brand
TELEMECANIQUE SENSORS
Shipping Weight
1.05 lb.
Contact Form
2NC/2NO
Style
Adjustable Lever Arm with Neutral Position, (Lever not included)
DC Contact Rating
10 A @ 600 V
Threaded for Panel Mounting
No
Depth
1.73 in.
Travel
Total Travel 90
Description/Special Features
1/2 in. NPT Conduit Entry
Type
Adjustable Lever Arm with Neutral Position (2), (Lever not included)
Electrical Connection
Screw Terminals
Voltage Rating
600 VAC/ VDC
Hazardous Location
No
Width
1.67 in.
Height
4.29 in.
Wiring Entry
1/2 in. NPT
General
AC Contact Rating - Limit Switch
10A @ 600V
DC Contact Rating - Limit Switch
10A @ 600V
Actuator Location - Limit Switch
Side
Mounting - Limit Switch
Surface
Actuator Style - Limit Switch
No Lever, Rotary
Mounting Hole - Limit Switch
(4) 0.21 in dia
Basic Actuator Style - Limit Switch
Rotary
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Body Depth - Limit Switch
2.36 in
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Body Height - Limit Switch
4.01 in
Operating Temp. Range
-13° to 158°F
Body Style - Limit Switch
Standard
Special Features
1/2 in. NPT Conduit Entry
Body Width - Limit Switch
1.57 in
Standards
UL, CSA, CE
Boot Sealed Actuator - Limit Switch
No
Stem Thread - Limit Switch
No Stem
Contact Form- Switches
2NC/2NO
Threaded for Panel Mounting - Limit Switch
No
Product Description
This heavy duty limit switch features zinc body construction. Use in packaging, materials handling, conveying, machining, and food and beverage handling.
