HONEYWELL MICRO SWITCH

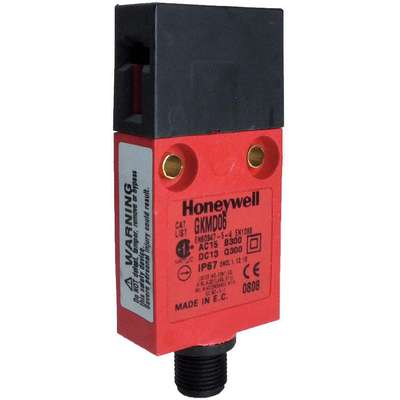

Safety Interlock Switch: Actuating Key, M12, 100mA to 10A @ 240V
#920312-8 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
AC Contact Rating
100 mA to 10 A @ 240 V
IP Rating
66, 67
Amperage
100 mA to 10 A
Item
Safety Interlock Switch
Body Material
Plastic
Mfr. Part Number
GKMD03
Brand
HONEYWELL MICRO SWITCH
NEMA Rating
1, 12, 13
Connection Type
M12
Operating Temperature Range
-1 deg. F to 185 deg. F
Contact Form
1NO/1NC, Direct Opening, Slow Action, Break Before Make
Package Quantity
1
Contact Material
Silver
Series
Gkm
Contact Type
1NC/1NO, Slow Action, BBM, Silver Contacts
Shipping Weight
.13 lb.
DC Contact Rating
100 mA to 10 A @ 250 V
Style
Actuating Key
Depth
0.63 in.
Type
Straight or 90 Key
Description/Special Features
Fully Sealed Construction, 1,000,000 Expected Mechanical Operational Life, Bottom Exit M12 Connector
Voltage
240 VAC/250 VDC
Height
2-3/4 in.
Width
1.34 in.
General
Operating Temp. Range
-13° to 185°F
Standards
UL, CSA, CE
Special Features
Fully Sealed Construction, 1,000,000 Expected Mechanical Operational Life, Bottom Exit M12 Connector
Product Description
The Microswitch™ safety interlock switch is designed to resist the ingress of dirt, dust, oil, and coolants.
