FILL-RITE

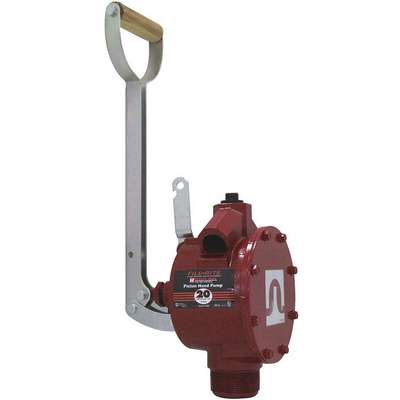

Cast Iron Hand Operated Drum Pump, Piston, Ounces per Stroke: 25 oz.
Hover over image to magnify
#920285-3 | Pkg Qty: 1
$244.33 pkg | $244.33 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Piston
Mfr. Warranty Length
2 yr.
Adapter Material
Cast Iron
Ounces per Stroke
25 oz.
Agency Compliance
UL/cUL
Outlet Size
3/4" NPT
Brand
FILL-RITE
Outside Height
19-3/4 in.
Bypass Valve
No
Overall Length
6
Compatible Fluids
Diesel, Gasoline, Kerosene, E15, Biodiesel up to B20
Overall Width
10 in.
Discharge Size
3/4
Package Quantity
1
Food Grade
No
Piston Material
Aluminum
GPM
10
Power Source
Hand Operated
Hand Operated Pump Action Type
Hand Operated Piston Pumps
Pressure Range
38 psi
Height
19-3/4 in.
Pump Design
Rotary Vane
Housing Material
Cast Iron
Pump Mount Size
2 in.
Inlet Size
1" NPT
Seal Material
BUNA-N
Item
Hand Operated Drum Pump
Seal Type
Mechanical
Length
6 in.
Self-Priming
Yes
Maximum Head
6 ft.
Series
5200 SERIES, PISTON HAND PUMPS
Maximum Liquid Temperature
150°F
Shipping Weight
9.6 lb.
Maximum Pressure
38 psi
Spout Material
Aluminum
Maximum Viscosity
50 SSU
Transfer Pump Application
Agriculture, Construction, Farming
Metered
No
Wetted Materials
Aluminum, Buna-N, Delrin(R)
Mfr. Part Number
FR150
Width
10 in.
General
Adapter Connection Type
MNPT
Includes Spout
Yes
Bung Connection Dia.
2 in
Max. Flow Rate
25 oz per stroke
Compatible Chemicals
Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Kerosene, Motor Oil, Stoddard Solvent (Mineral Spirits)
Max. Fluid Temp.
150 Degrees F
Discharge Connection Type
FNPT
Max. Head - Pumps
6 ft
Discharge Tube Outlet ID
3/4 in
Max. Head Pressure
50 psi
Discharge Tube Outlet OD
7/8 in
Max. Oil Flow
25 oz per stroke
Features
Anti-Siphon Valve, Can Be Used to Pump In Reverse Direction, Piston Hand Pump
Max. Outlet Pressure
50 psi
For Container Size
55 gal
Min. Operating Temp.
0 Degrees F
For Container Type
Drum
Not Recommended Chemicals
Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Calcium Chloride, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Cyclohexane, DEF, Deionized Water, Ethyl (Ethanol), Ethyl Acetate, Fertilizers, Formic Acid, Fresh Water, Fungicides, Heptane, Herbicides, Hexane, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Isopropyl (Isopropanol), Lacquer Thinners, Lithium Grease, Methyl (Methanol), Methyl Chloride, Methyl Ethyl Ketone (MEK), Naphtha, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Paint, Paint Thinner, Pesticides, Phosphoric Acid (40% Solution), Potassium Hydroxide (50%), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Toluene, Trichlorethylene (50%), Turpentine, Windshield Washer Fluid, Xylene
For Media Type
Antifreeze, Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethylene Glycol, Gasoline, Glycerin, Hydraulic Oil, Kerosene, Motor Oil, Stoddard Solvent
Pump Connection ID
2 in
For Use With
Diesel/Fuel Oil
Pump Connection OD
2 1/8 in
Height Above Container
19 1/2 in
Pump Package Type
Hand Pump Only
Housing Material - Pumps
Cast Iron
Runs Dry
Yes
Includes
Pump Only
Spout Connection Size
3/4 in
Includes Bung Adapter
Yes
Standards
UL Listed
Product Description
Agricultural hand drum pumps withstand contact with agricultural products such as fertilizers, herbicides, pesticides, and fungicides. They are used for filling sprayers and dispensing and transferring small volumes of fluids in farming, gardening, and landscaping applications.
