NTN

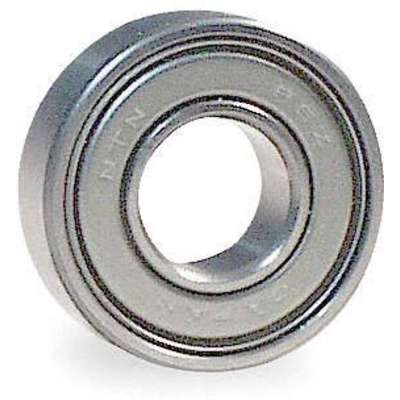

Radial Ball Bearing: 50 mm Bore Dia., 90 mm Outside Dia., 20 mm Width, Double Shielded
Hover over image to magnify
#920265-6Pkg Qty: 1
$72.52 pkg | $72.52 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bore Diameter
50 mm
Package Quantity
1
Brand
NTN
Radial Ball Bearing Seal/Shield Type
Double Shielded
Cage Material
Pressed Steel
Seal Material
Synthetic Rubber Molded to a Steel Plate
Dynamic Load Capacity
7,900 lb.
Shield Material
Rust-Resistant Metal
Industry Number
6210ZZC3
Shipping Weight
1.05 lb.
Item
Radial Ball Bearing
Single Row/Double Row
Single Row
Lubrication
SRI#2 Grease
Static Load Capacity
5200 lb.
Mfr. Part Number
6210ZZC3/L627
Temperature Range
-20 deg. F to 250 deg. F
Outside Diameter
90 mm
Width
20 mm
General
Ball Material
Alloy Steel
Maximum Speed
7,100 RPM
Bearing Industry Number
6210
Maximum Temperature
120 Degrees C
Cage Type
Pressed
Minimum Temperature
-40 Degrees C
Closure
Double Shielded
Number of Rows
One
Closure & Seal Type
Double Shielded
Outer Ring Width
20 mm
Dynamic Radial Load Capacity
39,000 N
Ring Material
Alloy Steel
Fillet Radius
1.1 mm
Static Radial Load Capacity
23,200 N
Finish
Chrome Plated
System of Measurement
Metric
ISO Rating
Class 0
Type
Shielded
Lubricant Material
SRI 2
Product Description
This radial ball bearing features single-row alignment.
Item Barcode
Radial Ball Bearing,Shielded,
