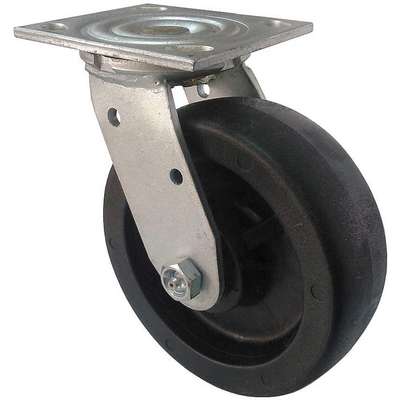

Standard Plate Caster, Swivel, Glass Filled Nylon, 1200 lb., 6" Wheel Dia.

Standard Plate Caster, Swivel, Glass Filled Nylon, 1200 lb., 6" Wheel Dia.
Swvl Plat Castr,Glass Nylon,6
PI_Asset_947819
PV_Thumbnail_1379443

#920250-7 | Pkg Qty: 1

$50.92 pkg | $50.92 ea
Item Number 920250-7
Scanner Description Swvl Plat Castr,Glass Nylon,6
Inventory Status Drop Ship Item
Weight 4.95 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Includes
Spanner Bushing
Caster Brake Included
No
Inside Bolt Hole Spacing
3 in. x 3 in.
Caster Core Material
Glass Filled Nylon
Item
Plate Caster
Caster Group
Swivel Caster
Load Rating
1200 lb.
Caster Load Rating Range
Medium Duty
Mfr. Part Number
1NWN7
Caster Plate Hole Pattern
B
Number of Wheels
1
Caster Plate Size
4 in. x 4-1/2 in.
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Raceway
Double Ball
Overall Height
7-1/4 in.
Caster Swivel Lock Type
No Lock Included
Pack Quantity
1
Caster Temperature Range Available
No
Plate Caster Sub-Type
Swivel
Caster Wheel Bearings
Roller
Plate Size
4 in. x 4-1/2 in.
Caster Wheel Shape
Standard
Standards
ICWM & ISO 9001
Caster Wheel/Tread Material
Glass Filled Nylon
Wheel Color
Black
Core Color
Black
Wheel Color Family
Black
Durometer
62 Shore D
Wheel Diameter
6 in.
Frame Finish
Zinc Plated
Wheel Width
2 in.

Product Description

Medium-duty standard plate casters mount to the bottom of carts, dollies, platform trucks, tool boxes, storage racks, and other industrial equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading, such as shops, docks, warehouses, waste-disposal areas, manufacturing plants, and other industrial settings. These casters have zinc-plated steel frames. Swivel versions of these casters have double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.

Item Barcode
9202507
  Name Item Description
Grainger Dropship Grainger Dropship 1NWN7 Swvl Plat Castr,Glass
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Swvl Plat Castr,Glass
