WIEGMANN

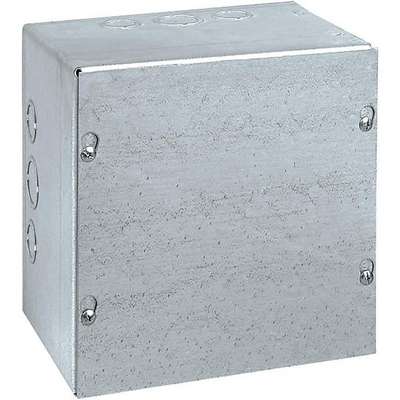

Wiegmann 4"H x 4"W x 4"D Metallic Enclosure, Silver, Knockouts: No, Screws Closure Method

Hover over image to magnify
Junc Box Enclsr,Mtlic,4In.Hx
Junc Box Enclsr,Mtlic,4In.Hx

#920198-8 | Pkg Qty: 1

$18.84 pkg | $18.84 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Basic Material
Metallic
Material of Enclosure
Galvanized Steel
Brand
WIEGMANN
Metal Gauge
16
Closure Method
Screws
Metallic / Non-Metallic
Metallic
Color Family
Silver
Mfr. Part Number
SC040404GNK
Cover Type
Screw
Mounting
Wall
Depth
4 in.
Mounting Hole Height
0.28
Description/Special Features
No Knockouts
Mounting Hole Width
.28 in.
Enclosure Cover Features
Plated Steel Screws
Mounting Type
Mounting Holes
Enclosure Cover Type
Screw On
NEMA Rating
1
Enclosure NEMA Rating
1
Nominal Enclosure Depth
4 in.
Finish
Galvanized
Nominal Enclosure Height
4 in.
Gauge
16
Nominal Enclosure Width
4 in.
Height
4 in.
Package Quantity
1
Hinge Design
Screwcover
Series
Sc-G
Item
Enclosure
Shipping Weight
2.16 lb.
Knockouts
No
Solid / Clear Cover
Solid
Latch Type
Screws
Type
Wall Mount
Length
4 in.
Usable Opening Depth
3.88 in.
Material
Steel
Width
4 in.
Material of Construction
16 ga. Steel
General
Includes
Screws
Standards
CSA Certified
Special Features
No Knockouts

Product Description

This enclosure is suitable for use as a junction or pull box in commercial and industrial applications. The cover design allows easy removal without extracting the cover screws.
