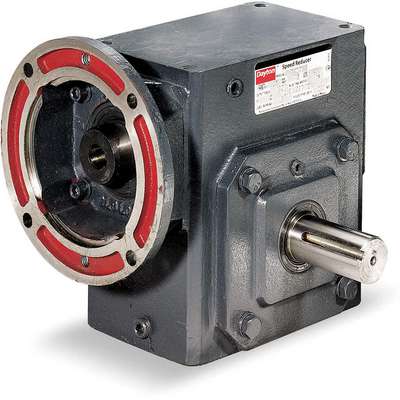

Speed Reducer: 44 Nominal Output RPM, 56C, 40:1, 1 hp Max. Input HP, C-Face, Right Angle

Hover over image to magnify

Double tap image to magnify

#920174-8Pkg Qty: 1

$999.99 pkg | $999.99 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Bearings

Ball

Number of Stages

Bore Diameter

5/8 in.

Package Quantity

Brand

DAYTON

Pinion Material

Hardened Steel

Duty

Standard

Reducer Model Number

84165

Frame

56C

Rotation

Forward/Reversible

Gear Material

Hardened and Ground Steel

Seal Type

Double Lip

Gear Type

Worm

Shaft Orientation

Right Angle

Housing Material

Cast Iron

Shipping Weight

47 lb.

Item

Speed Reducer

Single/Double Output/Universal

Single Output

Lubrication

Klubersynth UH1 6-460

Solid/Hollow Output Shaft

Solid

Mfr. Part Number

3GD49

Speed Reducer Type

C-Face

Mounting

Any Position Except input Motor Shaft Up

Worm Center Distance

2.62 in.

Nominal Output RPM

Worm Gear Material

Bronze

General

Input RPM

1,750 RPM

Output Torque @ 1.5 HP

1,028 in-lb

Max. Input HP

1 hp

Output Torque @ 1/2 HP

300 in-lb

Max. Output Torque

1,028 in-lb

Output Torque @ 3/4 HP

482 in-lb

Nominal Ratio

1900-01-01 16:01:00

Standards

AGMA

Output Torque @ 1 HP

755 in-lb

Product Description

Speed Reducer, C-Face, Right Angle Shaft Orientation, Standard Duty, 1,750 Input RPM, 44 Nominal Output RPM, Worm Center Distance 2.62 in, Bore Dia. 5/8 in, 56C Frame, Overhung Load 1,300 lb, 40:1 Nominal Ratio, Max. Input HP 1 hp, Max. Output Torque 1,028 in-lb, Number of Stages 1, Forward/Reversible Rotation, Any Position Except Input Motor Shaft Up Mounting, Ball Bearings, Hardened Steel Pinion Material, Worm Gear Type, Cast Iron Housing Material, Single Output, Output Shaft Dia. 1 1/4 in
