DAYTON

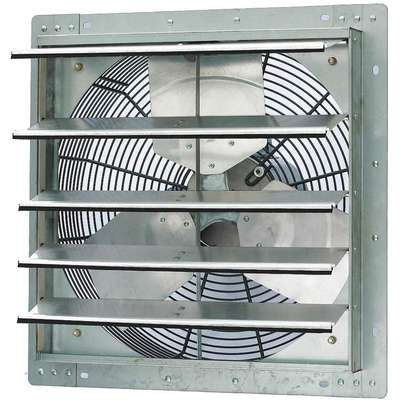

1/4 HP 18"-Dia. 115VACV Shutter Mount Exhaust Fan, 19" Square Opening Required

Hover over image to magnify
Exhaust Fan,18 In,115V,1/4hp,
Exhaust Fan,18 In,115V,1/4hp,

#920174-5 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Agency Compliance
UL Listed for US and Canada
Motor HP
1/4
Bearing Type
Ball
Motor Type
PSC
Blade Diameter
18 in.
Number of Blades
3
Blade Material
Stamped Aluminum
Pack Quantity
1
Brand
DAYTON
Phase
1
Height
21-1/8 in.
Shipping Weight
30 lb.
Item
Shutter Mount Exhaust Fan
Voltage
115 VAC
Mfr. Part Number
1HLA5
Width
21-1/8 in.
Motor Enclosure
Totally Enclosed Air-Over
General
Blade Dia.
18 in
Max. Ambient Temp.
104 Degrees F
CFM @ 0.000-In. SP
2590
Max. Depth
16 9/16 in
CFM @ 0.125-In. SP
2190
Sones @ 0.000-In. SP @ 5 Ft.
7.28
CFM @ 0.250-In. SP
1705
Square Opening Required
19 in
Fan Voltage
115 V AC
Wire Guard Finish
Gray Polyester
Includes
Shutter

Product Description

Dayton utility exhaust fans are designed for general purpose exhaust applications and may be used in stores, offices, factories, shops, farm buildings, greenhouses, etc. The efficient, easy-to-install exhaust fans come with automatic shutters. Shutter flanges have eight pre-punched 1/4 x 1/2” slotted mounting holes for ease of installation. To resist corrosion, fan guards have a charcoal metallic finish. Wire guards comply with OSHA Federal 1/2” max. opening requirement, and the fan is shipped completely assembled.
