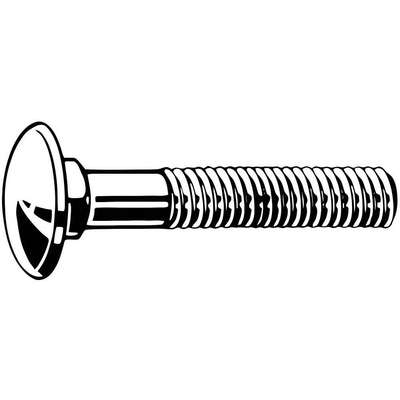

Carriage Bolt: Square, Steel, Grade 2, Black Oxide, 5/16"-18 Thread Size, 1 in lg, Inch, 100 PK
Hover over image to magnify
#920172-7Pkg Qty: 100
$24.70 pkg | $0.25 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Item
Carriage Bolt
Brand
APPROVED SUPPLIER
Length Under Head
1 in.
Carriage Bolt Material Grade/Class
Grade A
Material
Low Carbon Steel
Carriage Bolt Square Height
0.187 in.
Meets/Exceeds
ASME B18.5 & SAE J429
Carriage Bolt Square Width
0.324 in.
Mfr. Part Number
U08300.031.0100
Carriage Bolt Thread Style
Partially Threaded
Neck Type
Square Neck
Drill Size
21/64 in.
Package Quantity
100
Fastener Head Diameter
0.719 in.
Shipping Weight
3.13 lb.
Fastener Industry Standards
ASME B18.5, SAE J429
System of Measurement
Fractional
Fastener Thread Direction
Right Hand
Tensile Strength
150000 psi
Finish
Plain
Thread Size
5/16"-18
Head Type
Round Head
Thread Type
Coarse
Height
0.176 in.
General
For Use With
Grade 2 Hex Nuts
Minimum Neck Height
5/32 in
Maximum Head Height
11/64 in
Minimum Neck Width
5/16 in
Maximum Neck Height
3/16 in
Neck Height
11/64 in
Maximum Neck Width
21/64 in
Neck Width
5/16 in
Minimum Head Diameter
11/16 in
Thread Fit
2A
Minimum Head Height
5/32 in
Product Description
The square neck on this carriage bolt cuts into wood to prevent turning while the nut is tightened.
Item Barcode
Carriage Bolt,5/16-18x1L,PK100
