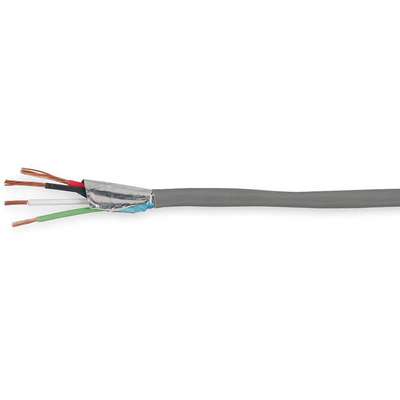

Shielded Power Limited and Communication Cable, 500 ft. Length, Gray Jacket Color
#920157-7 | Pkg Qty: 1
$197.14 pkg
| $197.14 ea
| Item Number | 920157-7 |
| Scanner Description | Comm Cable,Shielded,Riser,18/4, |
| Inventory Status | Drop Ship Item |
| Weight | 16.4 lb |
| Brand | CAROL |
Technical Specifications
Application
Power-limited Control Circuits, Intercom, Security, Audio, Background Music, Suggested Voltage Rating 300 volts
NEC Article
725 Type CL3R, 800 Type CMR
Brand
CAROL
NEC Article/Type
725 CL3R; 760 FPLR; 800 CMR
Cable Sub-Category
Multi-Paired
Nominal Outside Diameter
0.187 in.
Cable Type
Shielded, Riser
Number of Conductors
4
Color Family
Gray
Pack Quantity
1
Communication Cable Application
Alarm Systems, Audio Systems, Control Systems
Package Type - Data Cable
Reel in a Box
Conductor Color Code Table Number
5
Plenum / Riser Rated
Riser Rated
Conductor Size
18 AWG
Shielded
Yes
Conductor Size (AWG)
18
Shielded/Unshielded
Shielded
Conductor Size - Data Cable
18 AWG
Shielding
Flexfoil Shield
Conductor Type
Stranded
Shielding Material
Foil
Fire Rating - Data Cable
Riser
Solid / Stranded
Stranded
Insulation
Premium Grade S-R PVC
Spool Length
500 ft.
Insulation Material
Premium Grade S-R PVC
Spool/Coil Length
500 ft.
Item
Power Limited and Communication Cable
Standards
RoHS Compliant Directive 2002/95/EC
Item - Data Cable
Power Limited and Communication Cable
Stranding
7/26
Jacket Color
Gray
Temp. Range
-4° to 167°F
Jacket Color Family
Gray
Total Number of Conductors - Data Cable
4 (0 Pair)
Jacket Material
PVC
Vertical Tray Flame Test
California State Fire Marshall Approved
Jacket Material - Wire/Cable
PVC
Voltage (V)
300
Length
500 ft.
Wire Size
18 AWG
Mfg Part Number
E2034S.18.10
Wire Size - Wire/Cable
18 AWG
Product Description
Communication cable with mulitpaired cable application for burglar alarms, intercoms, PA and sound systems. Shielded cable has an aluminum/polyester Flexfoil® shield with stranded, tinned copper drain wire. Gray riser cable with insulated PVC. Ripcord included.
