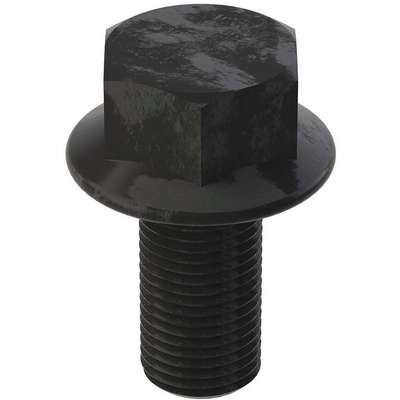

Flange Bolts: Std, Steel, Grade 8, Black Oxide, 1 in lg, Fully Threaded, Inch, HRC33, 25 PK
Hover over image to magnify
#920139-4Pkg Qty: 25
$31.00 pkg | $1.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Material
Carbon Steel
Brand
APPROVED SUPPLIER
Meets/Exceeds
SAE J429, IFI-111
Diameter
1/2 in.
Mfr. Part Number
822165G
Fastener Industry Standards
IFI-111
Package Quantity
25
Finish
Plain
Product Size
1/2-20 x 1 in.
Flange Bolt Head Type
Hex
Proof Load
120,000 psi
Flange Bolt Material Grade
Grade 8
Rockwell Hardness
C33 to C39
Flange Bolt Thread Style
Fully Threaded
Shipping Weight
3.15 lb.
Flange Bolt Type
Standard
System of Measurement
Fractional
Flange Diameter
1-5/64 in.
Thread Direction
Right Hand
Grade
8
Thread Length
1-1/4 in.
Head Width
3/4 in.
Thread Size
1/2"-20
Height
33/64 in.
Thread Type
Fine
Item
Flange Bolt
Type
High Strength
Length Under Head
1 in.
General
Dimensional Standards
ASME B18.2.1
Manufacturer Location
Globally Sourced
Drive Type
External Hex
Material Quality Standards
SAE J429
Fastener Length
1 in
Minimum Thread Length
1 in.
Finish Type
Black Oxide
Pack Size
Small Pack
Head Style
Hex Flange
Standards
ASME B18.2.1 SAE J429
Head Type
Hex Flange
Tensile Strength
150,000 psi
Product Description
Grade 8 Flanged Alloy Steel Hex-Head Cap Bolts have a comparable hardness to metric class 10.9.
- Meet SAE J429 standard.
