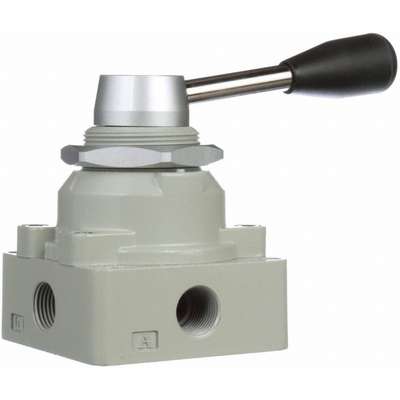

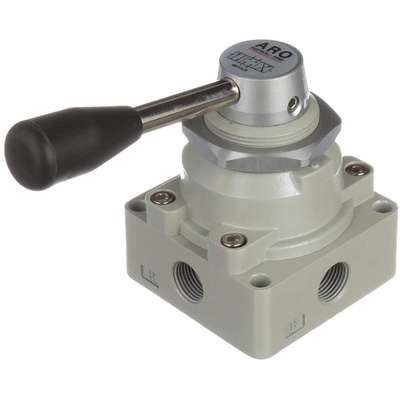

Manual Air Control Valve: 3/8 in Valve Port Size, NPT, Rotary Lever / Manual, 140 psi, Aluminum
Hover over image to magnify
#920118-2Pkg Qty: 1
$264.75 pkg | $264.75 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Actuator/Return
Rotary Lever/Manual
Overall Width
3 in.
Air Consumption
scfm
Package Quantity
1
Body Material
Aluminum
Pipe Size
3/8 in.
Brand
ARO
Port Size
3/8 NPT
CFM
4.3
Series
Maxair
Coefficient of Volume
2
Shipping Weight
1.95 lb.
Connection
NPT
Type
High Flow
Cv
2
Valve Actuator/Return
Rotary Lever / Manual
Item
Manual Air Control Valve
Valve Maximum Pressure Rating
140 psi
Maximum CFM
4.3
Valve Port Size
3/8 in.
Maximum Pressure
140 psi
Valve Temperature Range
15° to 122°F
Mfr. Part Number
M513LR
Valve Type
4-Way, 3-Position
Number of Positions
3
Valve Ways/Positions
4-Way/3-Position
Overall Height
4-9/32 in.
Width
3 in.
Overall Length
3 in.
General
Actuator / Return
Rotary Lever/Manual
Pneumatic Valves Product Group
Manual Air Control Valve
Center
Closed
Valve Actuator / Return
Rotary Lever / Manual
Center Position
Closed
Valve Ways and Positions
4-Way/3-Position
Max. CFM - Valves
65 cfm
Product Description
Ideal for most air cylinder positioning, material handling, or air motor applications.
