DYNAQUIP CONTROLS

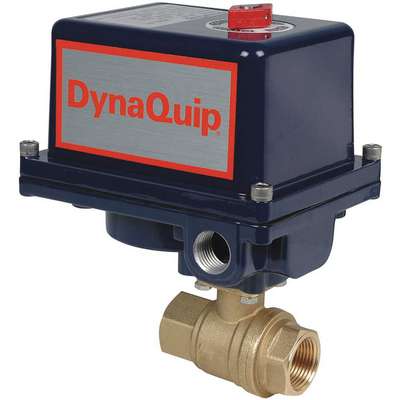

Brass Electronic Actuated Ball Valve, 1" Pipe Size, 12-24VAC/VDC Voltage
Hover over image to magnify
#920113-1Pkg Qty: 1
$739.64 pkg | $739.64 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Ball Valve Group
Actuated
Item
Electronic Actuated Ball Valve
Ball Valve Item
Electronic Actuated Ball Valve
Maximum Pressure
600 psi CWP
Body Material
Brass
Mfr. Part Number
EHH25ATE20H
Brand
DYNAQUIP CONTROLS
Package Quantity
1
Connection Type
FNPT x FNPT
Port
Full
For Pipe Size
1 in.
Shipping Weight
5.26 lb.
General Connection Type
Female NPT
Valve Style
2-Piece
General
Ambient Temp. Range
-40 Degrees to 150 Degrees F
Temp. Range
-20 Degrees to 370 Degrees F
Ball Valve Product Group
Actuated
Valve Basic Body Material
Brass
Body Seal Material
Viton
Valve Structure
2-Piece
Max. Operating Pressure Differential
300 psi
Product Description
This compact Dynaquip® electronic actuated ball valve provides accurate alignment and features an anticorrosive coating, NEMA 4X enclosure, reversible motor, terminal strip, and a hardened precision gear train. Models can be wired in parallel. 50% duty cycle. 2-1/2 sec. general cycle time.
