OSG

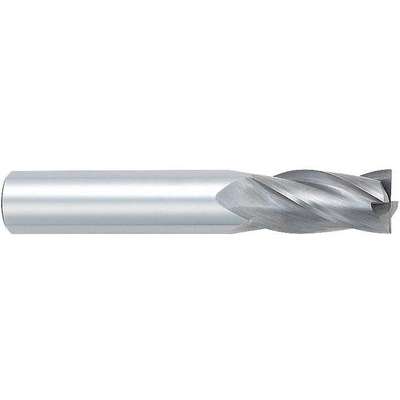

Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, TiAlN, 404

Hover over image to magnify
Carbide End Mill,404,1/4 D,3/4
Carbide End Mill,404,1/4 D,3/4
Square End Mill, 1/4" Milling Diameter, Number of Flutes: 4, 3/4" Length of Cut, TiAlN, 404 Video

#920107-4 | Pkg Qty: 1

$30.90 pkg | $30.90 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
OSG
Helix Angle
30 deg.
Cast Iron Compatibility
Yes
Item
Square End Mill
Cutting Direction
Right
Length of Cut
3/4 in.
Cutting Direction
Right Hand
List Number
404
Cutting Type
Center
Mfr. Part Number
404-250011
Diameter
1/4 in.
Milling Diameter
1/4 in.
Dimension Type
Fractional Inch
Non Ferrous Compatability
Yes
End
Center Cutting
Number of Flutes
4
End Mill Application
Finishing
Overall Length
2-1/2 in.
End Mill Cutting Type
Center Cutting
Pack Quantity
1
End Mill Material
Carbide
Primary Material Application
Aluminum, Cast Iron, Hardened Steel, Steel, Tool and Die Steel
End Style
Square
Shank Diameter
1/4 in.
Finish
TiAlN
Shipping Weight
.2 lb.
Grade
High Performance
Single End/Double End
Single End
Hardened Compatibility
Yes
Type
Regular
General
Application
For Carbon Steel, Tool Steel, Cast Iron, 300 or 400 Series Stainless Steel
Measurement System
Fractional Inch
Drilling Tool Configuration
Individual
Milling Dia.
1/4 in
End Mill Style
Square
Miniature End Mill
No
Finish - Machining
TiAlN
Primary Material Application ISO Code
H, K, N, P
Material - Machining
Carbide
Shank Dia.
1/4 in
Material Applications
Steel, Aluminum, Carbon Steel, Cast Iron, Hardened Steel
Shank Type - Machining
Straight
Material Grade - Machining
High Performance

Product Description

These end mills come in standard sizes expressed in fractional inches. Four-flute end mills clear chips more quickly than end mills with more flutes and allow for higher feed rates than end mills with fewer flutes. They also typically have larger cores and are less prone to breaking than end mills with fewer flutes. The TiAlN coating on these end mills withstands high temperatures and protects them from wear. It allows the end mills to be used at faster speeds than end mills with a bright finish, and it resists cracks and oxidation better than TiN or TiCN coatings.
