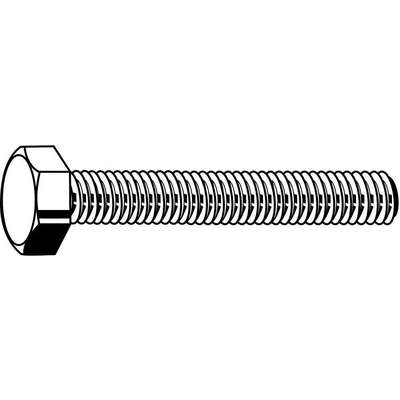

Hex Head Cap Screw: Steel, Class 8.8, Zinc Plated, M8-1.25 Thread Size, Coarse, 65 mm Fastener Lg
Hover over image to magnify
#920043-4Pkg Qty: 100
$36.03 pkg | $0.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Basic Material
Steel
Item
Cap Screw
Brand
APPROVED SUPPLIER
Length Under Head
65 mm
Country of Origin
Varies (subject to change)
Mfr. Part Number
M01210.080.0065
Diameter/Thread Size
M8-1.25
Package Quantity
100
Fastener Diameter
8 mm
Rockwell Hardness
C22 to C34
Fastener Material Grade/Class
Class 8.8
Shipping Weight
5.86 lb.
Fastener Tensile Strength
800 N/mm2
System of Measurement
Metric
Fastener Thread Style
Fully Threaded
Temperature Range
-58 deg. F to 302 deg. F
Finish
Zinc Plated
Thread Direction
Right Hand
Head Height
5.3 mm
Thread Length
65 mm
Head Type
Hex Head
Thread Type
Coarse/ USS/ UNC
Head Width
13 mm
General
Material
Carbon Steel
Minimum Thread Length
65 mm
Meets/Exceeds
DIN 933
Proof Load
580 N/mm2
Product Description
Hex Head Cap Screws feature hexagon-shaped heads for socket or wrench tightening. Class 8.8 steel cap screws are quenched and tempered. They are hard, yet malleable, allowing them to withstand shear force. Class 8.8 steel cap screws are comparable to Grade 5 steel cap screws.
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Documents
Item Barcode
HHCS,M8-1.25x65mm,Steel,Zp,
