MONSTER

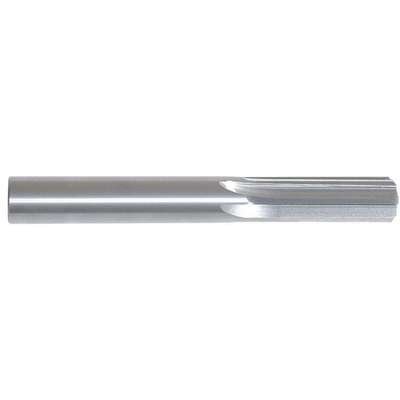

Monster Chucking Reamer, Carbide, Bright (Uncoated), Straight, Wire, #37

Hover over image to magnify
Chucking Reamer,#37,4 Flute,
Chucking Reamer,#37,4 Flute,
Double tap image to magnify

#920014-4Pkg Qty: 1

$28.62 pkg | $28.62 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
MONSTER
Overall Length
2-1/4 in.
Chamfer
45 deg.
Package Quantity
1
Cutting Direction
Right
Primary Material Application
All Materials
Decimal Equivalent
0.104
Product Size
#37
Dimension Type
Wire
Reamer Application
Through Hole
Finish
Bright (Uncoated)
Shank
Straight
Flute Length
5/8 in.
Shank Diameter
3/32 in.
Flute Type
Straight
Shank Size
0.104 in.
Item
Chucking Reamer
Shank Type
Straight
Large End Diameter
0.1040 in.
Shipping Weight
.17 lb.
Left/Right Hand
Right Hand Cutting
Size
37
Material
Carbide
Spiral Direction
Neutral
Mfr. Part Number
500-003037
Type
Straight Flute
Number of Flutes
4
Wire Size
37 in.
Number of Pieces
1
General
Application
Ferrous, Non-Ferrous
Material Applications
Aluminum, Brass, Bronze, Cast Iron, Copper, Hardened Steel, Heat-Resistant Alloys, Magnesium, Stainless Steel, Steel
Cutting Dia. Tolerance
+0.0000 in /+0.0002 in
Measurement System
Wire
Cutting Direction - Machining
Right Hand
Primary Material Application ISO Code
H, K, M, N1, N3, N4, P3, S
Finish - Machining
Bright (Uncoated)
Shank Dia.
3/32 in
Material - Machining
Carbide
Shank Type - Machining
Straight

Product Description

Wire-size carbide chucking reamers come in standard sizes that correspond to American Wire Gauge (AWG) sizes. This ensures a good fit when inserting a wire of the same wire size into the hole created by the reamer. The larger the wire size, the smaller the reamer. Straight-flute reamers push chips forward into a hole as they enlarge it to an exact size for a precise fit when installing fasteners or other parts. They are the most commonly used style of reamer. These chucking reamers are made from carbide steel and have a bright finish that is unaffected when their cutting edges are resharpened. The reamers' straight shank mounts to the chuck of a drill press or similar machining tool.

Item Barcode

9200144
Chucking Reamer,#37,4 Flute,
