HUBBELL WIRING DEVICE-KELLEMS

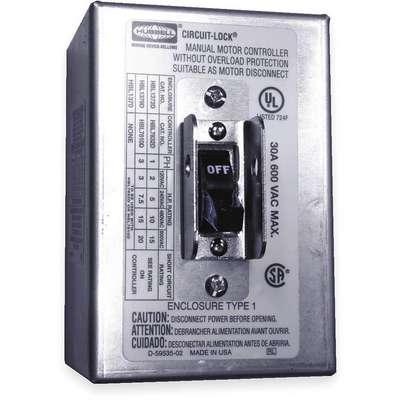

Hubbell Wiring Device-Kellems Manual Motor Switch, Toggle, 1 Enclosure NEMA Rating
Hover over image to magnify
#920002-9 | Pkg Qty: 1
$198.13 pkg | $198.13 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps AC
30
NEMA Type
NEMA 1
Brand
HUBBELL WIRING DEVICE-KELLEMS
Number of Poles
3
Depth
3.43 in.
Package Quantity
1
Description/Special Features
Thermoplastic Enclosure
Phase Loss Sensitivity
No
Enclosure NEMA Rating
1
Shipping Weight
1.55 lb.
Enclosure Type
Enclosed
Starter Type
NEMA Style
Height
4.52 in.
Type
Toggle
Item
Manual Motor Switch
Width
3.97 in.
Mfr. Part Number
HBL1389D
General
HP @ 1 Phase - 120V
2 hp
HP @ 3 Phase - 480V
15 hp
HP @ 1 Phase - 230V
5 hp
Operator
Toggle
HP @ 3 Phase - 230V
7-1/2
Pilot Light
No
HP @ 3 Phase - 240V
7 1/2 hp
Standards
UL, CSA
HP @ 3 Phase - 460-575V
15 hp
Product Description
Manual Switches and Fractional Horsepower Manual Starters
- NEMA Manual Switches
- Nonreversing switches provide On/Off control of 1- or 3-phase AC motors where overload protection is not required or is provided separately. All switches rated 1, 1-1/2, 2 HP at 90/115/230VDC respectively. 2-pole, 10 switches rated 2 HP at 115/230V. 3-pole, 30 switches are rated 7-1/2 HP at 230V and 10 HP at 460 to 575V. For use in small machine tools, pumps, fans, conveyors, and electrical machinery. Also for nonmotor loads such as resistance heaters.
- UL Listed.
- NEMA Type 1
- Hubbell models feature an integral toggle guard with lockout capability to meet OSHA lockout/tagout regulations.
Item Barcode
Manual Motor Switch,30A,600VAC,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 1MTD7 | Manual Motor Switch,30A, |
 | UNSPSC CODES | 39122214 | |
 | VMRS (ATA) CODES | 053-006-009 | Manual Motor Switch,30A, |
