CHICAGO-LATROBE

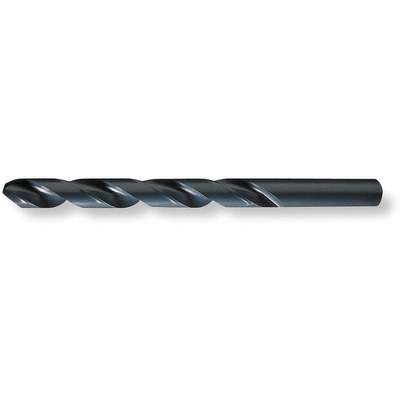

Chicago-Latrobe #41, High Speed Steel, Jobber Drill Bit, 2-3/8" Overall Length, Black Oxide Drill Bit Finish
Hover over image to magnify
#919981-3Pkg Qty: 1
$2.27 pkg | $2.27 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
CHICAGO-LATROBE
Jobber Length Basic Material
High Speed Steel
Coolant Through
Non-Coolant Through
List Number
150ASP
Cutting Direction
Right
Maximum Drilling Depth
3/8 in.
Decimal Equivalent
0.096
Meets/Exceeds
National Aerospace Standards (NAS) 907, Type B
Depth x Diameter Ratio
4xD
Mfr. Part Number
45711
Dimension Type
Wire Size
Number of Flutes
2
Drill Bit Dimension Type
Wire
Number of Pieces
1
Drill Bit Finish
Black Oxide
Overall Length
2-3/8 in.
Drill Bit Material
High Speed Steel
Package Quantity
1
Drill Bit Point Angle
135 deg.
Point Angle
135 deg.
Drill Bit Size
#41
Point Type
Split Point
Drill Point Length
0.0199 in.
Series
150ASP
Finish
Black Oxide
Shank Diameter
3/32 in.
Flute Length
1-3/8 in.
Shank Length
1 in.
Flute Type
Spiral
Shank Type
Straight
Grade
Heavy Duty
Shipping Weight
.05 lb.
Helix Angle
28 deg.
Spiral Direction
Right Hand
Item
Jobber Length Drill Bit
Wire Size
#41
General
Aircraft Drill
Yes
Drill Length Class
Jobber Length
Application
For Alloy, Stainless And Tool Steels And Cast Iron
Material Grade - Machining
High Performance
Drill Bit Grouping
Individual
Primary Material Application ISO Code
K, M, P
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Standards
NAS 907 Type B
Product Description
These drill bits meet National Aerospace Specification (NAS) 907 Type B. They have a black-oxide finish that retains lubricants to improve the bits' wear resistance and chip flow. Black-oxide bits should only be used for drilling ferrous metals.
