WIDIA GTD

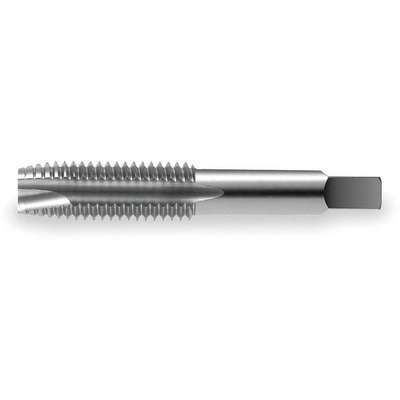

M20-2.50, Tap, Right Hand, Plug, 4 Flutes, Vanadium High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#919956-3Pkg Qty: 1
$99.99 pkg | $99.99 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Length
2-15/32 in. in.
Cutting Direction
Right
Shipping Weight
.4 lb.
Dimension Type
Decimal Inch
Spiral Direction
Neutral
Flutes
4
Square Size
0.489 in.
Item
Spiral Point Tap
Subgroup | Tap
Spiral Point
List Number
5351
Tap Chamfer
Plug
Material
Vanadium High Speed Steel
Tap Dimension Type
Metric
Mfr. Part Number
13409
Tap Finish
Bright (Uncoated)
Number of Flutes
3
Tap Material
High Speed Steel
Number of Pieces
1
Tap Size
M20
Overall Length
113.54 mm
Tap Style
Spiral Point
Package Quantity
1
Tap Thread Size
M20x2.50
Pitch
2.50 mm
Tap Thread Type
Metric Coarse
Pitch Diameter Limits
D7
Thread Direction
Right Hand
Primary Material Application
Steel
Thread Length
50.8 mm
Series
5351/2351
Thread Type
Metric Coarse
Shank Diameter
16.56 mm
Type
Plug
General
55% Thread Drill Size
18.20 mm
Secondary Material Application
Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel, Steel
65% Thread Drill Size
18.20 mm
Secondary Material Application ISO Code
K, M, N
75% Thread Drill Size
17.50 mm
Shank Type - Machining
Straight
Coolant Fed
Non-Coolant Through
Standards
ANSI, USCTI
Extended Neck
Yes
Tap Grouping
Individual
Primary Material Application ISO Code
P
Product Description
These taps are designed for tapping steel. They come in standard sizes expressed in millimeters. The bright finish on these taps provides a smooth, polished surface.
