WIDIA GTD

1/2"-20, Tap, Right Hand, Plug, 3 Flutes, High Speed Steel, Uncoated Tap Finish

Hover over image to magnify

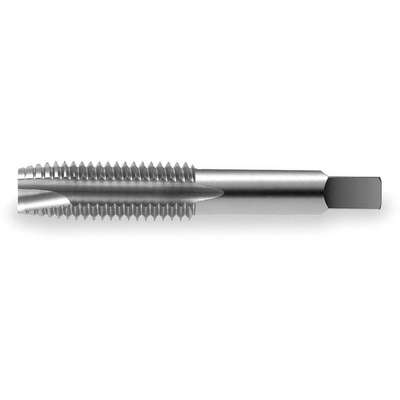

Sp Point Tap,Plug,1/2-20,
Sp Point Tap,Plug,1/2-20,
Double tap image to magnify

#919906-5Pkg Qty: 1

$25.78 pkg | $25.78 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
WIDIA GTD
Shank Length
1-23/32 in. in.
Cutting Direction
Right
Shipping Weight
0.1 lb.
Cutting Direction
Right Hand
Size
1/2 in.
Dimension Type
Decimal Inch
Spiral Direction
Neutral
Flutes
3
Square Size
0.275 in.
Grade
WP49EG
Subgroup | Tap
Spiral Point
Insert Material
High Speed Steel
Tap Chamfer
Plug
Item
Spiral Point Tap
Tap Dimension Type
Inch
List Number
5301
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
13334
Tap Size
1/2 in.
Number of Flutes
3
Tap Style
Spiral Point
Number of Pieces
1
Tap Thread Size
1/2 in.-20
Overall Length
3-3/8 in.
Tap Thread Type
UNF
Pack Quantity
1
Thread Direction
Right Hand
Pitch
20
Thread Length
1-21/32 in.
Pitch Diameter Limits
H3
Thread Size
1/2"-20
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Type
UNF
Series
5301/2301
Type
Plug
Shank Diameter
11/64 in.
General
Application
For Threading Ductile Steel, Iron, Copper, Copper Alloys, Brass and Non-metallics
Shank Type - Machining
Straight
Class of Fit
6H
Standards
DIN 376
Measurement System
Fractional Inch
Tap Grouping
Individual
Primary Material Application ISO Code
N
Thread Limit / Class of Fit
H3 / 6H
Secondary Material Application
Cast Iron, Stainless Steel
Thread Standard
UNF, UNJF
Secondary Material Application ISO Code
K, M, N

Product Description

These taps have a unified thread standard and are designed for tapping steel. UN coarse (UNC) taps have fewer threads per inch than UN fine (UNF) taps. Compared to UNF taps, UNC taps perform better in threading applications on brittle materials and are less likely to cross thread. Coarse threads can also withstand more physical abuse than fine threads. UNF taps have more threads per inch than UNC taps. Compared to UNC taps, UNF taps perform better in threading applications on thin-walled workpieces and hard materials. Fine threads provide more tensile strength and shear strength than coarse threads. The bright finish on these taps provides a smooth, polished surface.
