WIDIA GTD

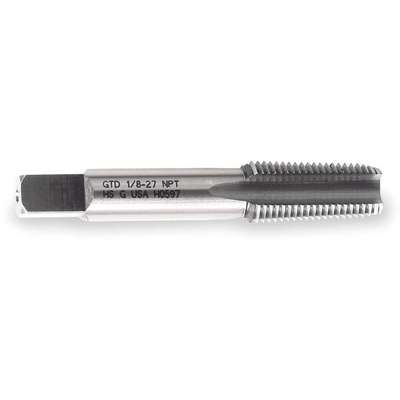

Pipe and Conduit Thread Tap, Thread Size 1/8"-27, NPT, Overall Length 2 1/8", High Speed Steel
Hover over image to magnify
#919906-4Pkg Qty: 1
$36.77 pkg | $36.77 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Length
1-3/8 in. in.
Cutting Direction
Right
Shipping Weight
0.05 lb.
Cutting Direction
Right Hand
Size
1/8 in.
Dimension Type
Decimal Inch
Square Size
0.328 in.
Flutes
4
Subgroup | Tap
Pipe
Helix Angle
0 deg.
Tap Chamfer
Plug
Insert Material
High Speed Steel
Tap Dimension Type
Inch
Item
Pipe and Conduit Thread Tap
Tap Finish
Bright (Uncoated)
List Number
5320
Tap Material
High Speed Steel
Material
High Speed Steel
Tap Size
1/8 in.
Mfr. Part Number
16205
Tap Style
Pipe
Number of Flutes
4
Tap Thread Size
1/8 in.-27
Number of Pieces
1
Tap Thread Type
NPT
Overall Length
2-1/8 in.
Thread Direction
Right Hand
Pack Quantity
1
Thread Length
3/4 in.
Pitch
27
Thread Size
1/8"-27
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Type
NPT
Series
2320/5320
Type
Taper
Shank Diameter
7/16 in.
General
Max. Projection
0.3120 in
Tap Length Standard
USCTI
Measurement System
Fractional Inch
Tap Shank Standard
USCTI
Primary Material Application ISO Code
N
Thread Limit
H2
Standards
ANSI, USCTI
Thread Limit / Class of Fit
H2
Tap Grouping
Individual
Product Description
High-performance pipe and conduit taps provide better wear resistance than other high-speed steel pipe and conduit taps when threading holes in workpieces made from specific materials. These taps are made from HSS-E, a type of high-speed steel that has a higher percentage of cobalt and vanadium than standard high-speed steel.
Expertly Selected Product Pairings
Item Barcode
Pipe Tap,Taper,1/8-27,Uncoated,
