WIDIA GTD

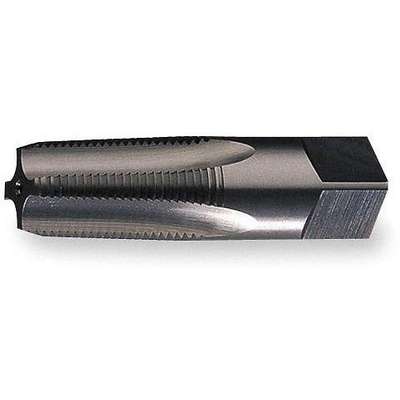

3/8"-18, Tap, Right Hand, Taper, 4 Flutes, High Speed Steel, Uncoated Tap Finish
Hover over image to magnify
#919906-3Pkg Qty: 1
$55.36 pkg | $55.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
WIDIA GTD
Shank Diameter
11/16 in.
Cutting Direction
Right
Shank Length
1-1/2 in. in.
Cutting Direction
Right Hand
Shipping Weight
0.2 lb.
Dimension Type
Decimal Inch
Size
3/8 in.
Drill Bit Size
9/16 in.
Square Size
0.531 in.
Flutes
4
Subgroup | Tap
Pipe
Insert Material
High Speed Steel
Tap Chamfer
Plug
Item
Pipe and Conduit Thread Tap
Tap Dimension Type
Inch
List Number
5320
Tap Finish
Bright (Uncoated)
Material
High Speed Steel
Tap Material
High Speed Steel
Mfr. Part Number
16217
Tap Size
3/8 in.
Number of Flutes
4
Tap Style
Pipe
Number of Pieces
1
Tap Thread Size
3/8 in.-18
Overall Length
2-9/16 in.
Tap Thread Type
NPT
Pack Quantity
1
Thread Direction
Right Hand
Pitch
18
Thread Length
1-13/16 in.
Primary Material Application
Aluminum, Brass, Bronze, Copper
Thread Type
NPT
Series
2320/5320
Type
Taper
General
Max. Projection
0.4540 in
Tap Length Standard
USCTI
Measurement System
Fractional Inch
Tap Shank Standard
USCTI
Primary Material Application ISO Code
N
Thread Limit
H2
Standards
ANSI
Thread Limit / Class of Fit
H2
Tap Grouping
Individual
Product Description
High-performance pipe and conduit taps provide better wear resistance than other high-speed steel pipe and conduit taps when threading holes in workpieces made from specific materials. These taps are made from HSS-E, a type of high-speed steel that has a higher percentage of cobalt and vanadium than standard high-speed steel.
