MICRO 100

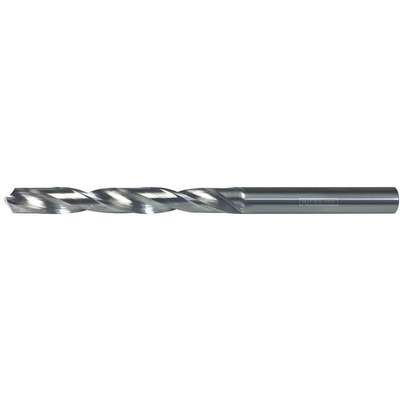

Micro Drill Bit, Drill Bit Size 1/8", Drill Bit Point Angle 118, Conventional Point, Carbide

Hover over image to magnify
Drill - 2 Fl Jobber Length,1/8
Drill - 2 Fl Jobber Length,1/8
Micro Drill Bit, Drill Bit Size 1/8", Drill Bit Point Angle 118, Conventional Point, Carbide Video
Micro Drill Bit, Drill Bit Size 1/8", Drill Bit Point Angle 118, Conventional Point, Carbide Video

#919899-7 | Pkg Qty: 1

$28.46 pkg | $28.46 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
MICRO 100
Item
Micro Drill Bit
Coolant Through
Non-Coolant Through
Jobber Length Basic Material
Carbide
Cutting Direction
Right
Maximum Drilling Depth
1-1/4 in.
Cutting Direction
Right Hand
Mfr. Part Number
DR-125-2
Decimal Equivalent
1/8
Number of Flutes
2
Depth x Diameter Ratio
10xD
Overall Length
2-1/4 in.
Drill Bit Dimension Type
Fractional Inch
Pack Quantity
1
Drill Bit Material
Solid Carbide
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
1/8 in.
Series
DR
Finish
Uncoated
Shank Diameter
1/8 in.
Flute Length
1-1/4 in.
Shank Length
1 in.
Flute Type
Spiral
Shank Type
Straight
Grade
C2 Micro Grain
Shipping Weight
0.02 lb.
General
Aircraft Drill
No
Drill Length Class
Micro Length
Circuit Board Drill
No
Finish - Machining
Bright (Uncoated)
Coolant Fed
Non-Coolant Through
Material - Machining
Carbide
Depth:Dia. Ratio
10xD
Material Grade - Machining
C2
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Conventional Point
Shank Dia.
1/8 in
Drill Diameter Tolerance
+0.0000 in /-0.0005 in
Shank Type - Machining
Straight

Product Description

Carbide micro drill bits provide excellent hardness, wear resistance, and heat resistance. They create precise holes with a smooth finish and often eliminate the need for reaming the hole after drilling. Carbide bits require a rigid setup such as a fixed-spindle machine. The bright finish on these drill bits is not affected when the bits' cutting edges are resharpened. Spiral-flute drill bits evacuate chips as the bits drill into a workpiece.
