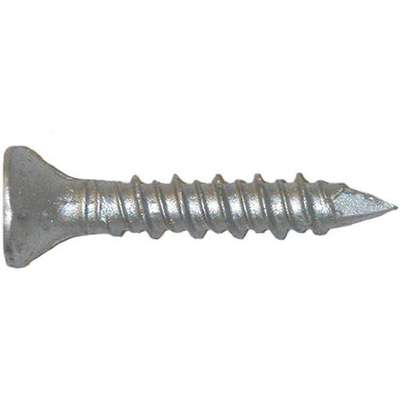

Flat Phillips Concrete Screw, 1/4" Dia. x 1-3/4", Stainless Steel, Silver Climashield® Fastener Fini

Zoom Icon

#919893-9 | Pkg Qty: 100

$143.85 pkg | $1.44 ea
Item Number 919893-9
Scanner Description Tapcon Anchor,Phillips,410SS,1/
Inventory Status Drop Ship Item
Weight 1.65 lb
Brand RED HEAD

Technical Specifications

Anchor Diameter
1/4 in.
Item
Concrete/Masonry Screw
Anchor Length
1-3/4 in.
Material Grade
410
Anchor Material
Stainless Steel
Max. Work Thickness
3/4 in.
Anchor Screw Head Style
Flat Phillips
Mfg Part Number
3374907
Anchor Screw Type
Concrete Screw
Min. Embedment
1 in.
Application
Specified for anchorage into Concrete, Brick or Block
Pack Quantity
100
Brand
RED HEAD
Seismic Approved
No
Fastener Finish
Silver Climashield®
Type
Tapcon, Silver Climaseal
ICC Approved for Cracked Concrete
No
Ultimate Shear (Lb.)
1360
ICC Approved for Un-Cracked Concrete
Yes
Ultimate Tension (Lbs.)
800

Product Description

Large-Diameter Tapcon® Self-Threading Anchors

  • Grade 5 zinc-plated, hardened steel
  • Removable structural screw anchors are for high-load capacity applications. Use in concrete and masonry and in dry, noncorrosive environments. Install with standard masonry drill bits.
  • Masonry Anchors
  • For wood-to-concrete applications Drill bit supplied in box of 100 each
  • Easy-to-install anchors can be quickly removed. Notched high-low threads cut into masonry for greater stability and pull-out values. Tapered shank provides a wedging action for a strong, reliable hold. Accommodate close-to-edge applications. Superior pull-out and shear strengths.
  • Note: Not recommended for use with aluminum when moisture may be present.

Compliance & Restrictions

Ship State Exclusion Product cannot ship to States or Zip Codes: PR
Item Barcode
9198939
  Name Item Description
Grainger Dropship Grainger Dropship 15X499 Tapcon Anchor,
UNSPSC CODES UNSPSC CODES 31161502
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Tapcon Anchor,
