MITUTOYO

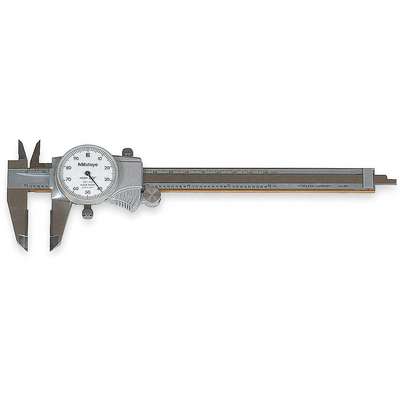

Mitutoyo 0-6" Range Stainless Steel Inch Dial Caliper with 0.001" Graduations

Hover over image to magnify
Dial Caliper,0-6 In,Carbide
PI_Asset_1028420
Dial Caliper,0-6 In,Carbide
PI_Asset_1028420

#919867-8 | Pkg Qty: 1

$222.19 pkg | $222.19 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Accuracy
+/-0.001 in.
Graduations
0.001 in.
Brand
MITUTOYO
Item
Dial Caliper
Calibration Certificate
No
Mfr. Part Number
505-738
Caliper Dial Color
White
Package Quantity
1
Caliper Material
Stainless Steel
Range per Revolution
0.100 in.
Caliper Range
0-6 in.
Shipping Weight
.95 lb.
Dimension Type
Inch
General
Case Type
Case
Long Form Calibration Certificate
No
Depth Rod Shape
Rectangular
Maximum Measurement - Inch
6 in
Features
Carbide-Tipped Jaws, Lapped Jaws, Inverted Covered Rack and Dial Movement
Measurements
4-Way
Included Certification
Certificate of Inspection
Measures Depth
Yes
Includes
Fitted Case
Measures Inside Dimension
Yes
Includes Bezel Lock
Yes
Measures Outside Dimension
Yes
Includes Case
Yes
Measures Step
Yes
Includes Locking Nut
Yes
Minimum Measurement - Inch
0 in
Jaw Actuation Type
Thumb Wheel
Shockproof Dial
Yes
Jaw Depth - Upper Jaw
21 mm
Standards
US Federal Specifications
Jaw Shape
Standard Blade Nibs For Inside/Outside Measurement

Product Description

These calipers have wear-resistant carbide-tipped or carbide-faced jaws for durability and longevity. They are a good choice for repeated use on abrasive materials and workpieces. The graduated dial displays measurements in millimeters, decimal inches, or fractional inches. Dial calipers use adjustable jaws that slide along a beam to measure between two opposite sides of a tool or part. They are easier to read than vernier calipers and are commonly used in light and heavy manufacturing production, machine and woodworking shops. Main and upper jaws can be used for outside, inside, and step measurements. Models with a depth rod can be used for depth measurements.

Item Barcode
9198678
Dial Caliper,0-6 In,Carbide
 NameItemDescription
Grainger DropshipGrainger Dropship4LA87Dial Caliper, 0-6 In,
UNSPSC CODESUNSPSC CODES41111621
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Dial Caliper, 0-6 In,
