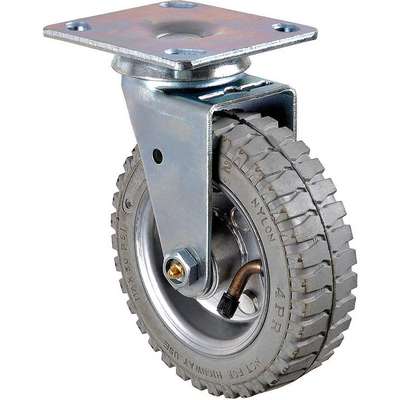

6" Light-Duty Knobby Tread Swivel Pneumatic Caster, 200 lb. Load Rating
Hover over image to magnify
#919796-1 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Technical Specifications
Key Specifications
Brand
APPROVED SUPPLIER
Mfr. Part Number
1ULG7
Caster Group
Swivel Caster
Mounting Type
15
Caster Load Rating Range
Light Duty
Number of Wheels
1
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-3/8 in. x 3-5/8 in.
Caster Raceway
Double Ball
Overall Height
7-1/2 in.
Caster Sub-Type
Swivel
Package Quantity
1
Caster Temperature Range Available
No
Plate Size
4 in.×4-17/32 in.
Caster Wheel Bearings
Ball
Plate Thickness
7/32 in.
Caster/Wheel Tread
Knobby
Plate Type
B
Frame Finish
Zinc Plated
Ply
4
Frame Material
Steel
Shipping Weight
5 lb.
Hub Type
Symmetrical
Subcategory
Swivel Caster
Inside Bolt Hole Spacing
3 in. x 3 in.
Wheel Bearings
Ball
Item
Pneumatic Caster
Wheel Diameter
6 in.
Load Rating
200 lb.
Wheel Width
2 in.
General
Caster Frame Material
Steel
Mounting Plate Size
4 in x 4-1/2 in
Caster Mounting Type
Plate
Mounting Plate Size (Bolt Hole Pattern)
4 in x 4-1/2 in (B)
Caster Product Group
Swivel Caster
Raceway
Double Ball
Caster Temp. Range Available
No
Sub-Category
Swivel Caster
Hub Materials
Steel
Swivel Raceway Type
Double Ball
Hub Position
Symmetrical
Tire Rim Dia.
4 in
Hub Width
2-1/4"
Tire Thickness
7/8 in
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Precision Ball
Mounting Bolt Dia.
3/8 in
Wheel Dia.
6 1/8 in
Mounting Plate Bolt Hole Pattern
B
Wheel/Tread Material
Rubber
Product Description
This pneumatic caster is designed to help in transporting delicate loads over rough surfaces. Ball bearings help to facilitate smooth rolling and turning.
