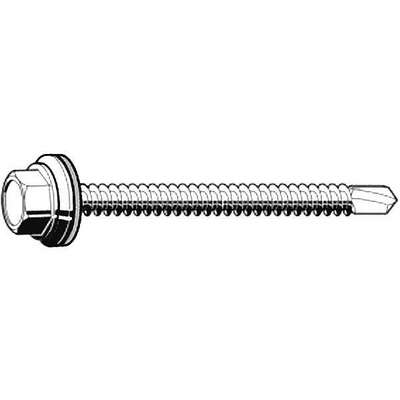

2" Hardened Steel Self Drilling Screw with Hex Washer Head Type and Zinc-Plated Finish

2" Hardened Steel Self Drilling Screw with Hex Washer Head Type and Zinc-Plated Finish

#919580-8 | Pkg Qty: 100

$23.25 pkg | $0.23 ea
Item Number 919580-8
Scanner Description Self Drilling Screw,#12 x 2,
Inventory Status Drop Ship Item
Weight 1.64 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
For Attaching Variety of Materials to Metal up to 3 Gauge
Item
Self Drilling Screw
Basic Material
Steel
Length Under Head
2 in.
Brand
APPROVED SUPPLIER
Material
Hardened Steel
Drill Point Length
0.353 in.
Meets/Exceeds
SAE J78
Drill Point Size
#3
Mfr. Part Number
U31702.021.0200
Drive Type
Hex
Pack Quantity
100
Driver Size
5/16 in.
Self Drilling Screw Head Type
Hex Washer Head
Finish
Zinc Plated
System of Measurement
Fractional
Head Color
Standard
Thread Size
#12-14
Head Height
0.155 in.
Type
Self Drilling with Neoprene Washer
Hex Width
0.305 in.
Washer Outside Diameter
0.432 in.

Product Description

Self-Drilling Sheet Metal Screws

  • Package quantities are exact Meet SAE J78 standard
  • 1-pc., 1-side-installation fasteners drill their own holes and form their own internal mating threads. Climacoat finish prevents rust from bleeding into substrate. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
  • Self-Drilling Hex Washer Sheet Metal Screws
  • Package quantities are exact All meet SAE J78 standard
  • 1-pc., 1-side-installation fasteners have a drilling point tip that drills its own hole and forms its own internal mating threads. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Electro Zinc corrosion-resistant finish is applied to No. 36K129 with a process that conforms to ASTM B633 specifications. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
Item Barcode
9195808
  Name Item Description
Grainger Dropship Grainger Dropship 2XA62 Self Drilling
UNSPSC CODES UNSPSC CODES 31161507
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Self Drilling
