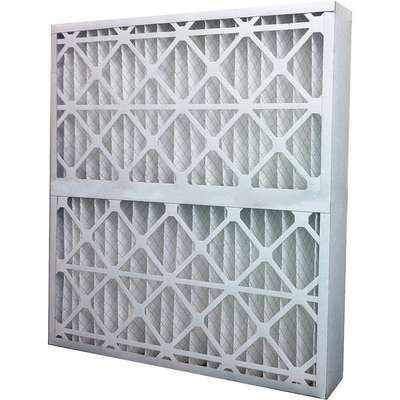

Air Handler Antimicrobial Pleated Air Filter, 15x31x1, MERV 8, High Capacity, Synthetic, Beverage Board

Hover over image to magnify
Antimicrobial Treated Pleat,
Antimicrobial Treated Pleat,
Air Handler Antimicrobial Pleated Air Filter, 15x31x1, MERV 8, High Capacity, Synthetic, Beverage Board Video

#919316-4 | Pkg Qty: 12

$159.84 pkg | $13.32 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Actual Depth
3/4 in.
Item
Pleated Air Filter
Actual Height
14-3/4 in.
MERV
8
Actual Width
30-3/8 in.
Maximum Temperature
180 deg. F
Agency Compliance
UL 900 Classified
Maximum Velocity
500 fpm
Air Flow @ 300 FPM
969 cfm
Media Area
7.3 sq. ft.
Air Flow @ 500 FPM
1,615 cfm
Media Type
Synthetic
Brand
AIR HANDLER
Mfr. Part Number
3DVL1
Capacity
High Capacity
Nominal Depth
1 in.
Filter Efficiency
40%
Nominal Height
15 in.
Filters Out
Cat & Dog Dander, Cement Dust, Dust Mites, Dusting Aids, Fabric Protector, Hair Spray, MERV 5-8 Mold, Pudding Mix, Spores
Nominal Width
30-5/8 in.
Frame Color
White
Package Quantity
12
Frame Included
Yes
Removes Particles Down To
3.0 to 10.0 microns
Frame Material
Beverage Board
Shipping Weight
9.6 lb.
General
Actual Filter Size
14-3/4 in x 30-5/8 in x 3/4 in
Initial Resistance @ 500 fpm
0.37 in wc
Air Filter Capacity
High Capacity
Media Material
Synthetic
Common Applications
Antimicrobial
Nominal Filter Size
15x31x1
Filter Efficiency - Air Filters
0.4
Performance Rating
MERV 8
Final Recommended Resistance
1.0 in in wc
Pleats per Linear Foot
15
Frame or Header Material
Beverage Board
Standards
UL 900 Classified
Initial Resistance @ 300 fpm
0.20 in wc
Style - Air Filters
Panel

Product Description

These MERV 8 pleated air filters have been treated with an antimicrobial agent that prevents mold and mildew from growing on the air filter. They are ideal for commercial buildings, healthcare facilities, and locations where moisture is present and mold or mildew may grow on standard filters. MERV 8 pleated air filters provide between 50% and 70% efficiency for filtering particles between 3 and 10 microns in size (such as mold spores, dusting aids, and cement dust). They also provide 20% or less efficiency for filtering particles between 1 and 3 microns in size (such as legionella, lead dust, humidifier dust, coal dust, and nebulizer droplets). They capture contaminants more efficiently than MERV 7 pleated air filters.

Pleated air filters capture airborne contaminants more effectively than non-pleated air filters because the pleated filter media provides more surface area for trapping contaminants than non-pleated media. These filters are commonly installed in HVAC systems in food and beverage, healthcare, hospitality, education, and industrial facilities to remove contaminants from the air stream and improve the quality of the air. They also prevent the contaminants from building up in the equipment and causing damage to it. The filters are designed to be discarded when they are spent. They typically have a MERV (minimum efficiency reporting value) rating of between 7 and 13. A filter's MERV rating measures how efficiently it removes contaminants from the air stream based on the size of the particles it can effectively capture. The higher the MERV rating is, the more effectively the filter traps small particles.
