#918956-5 | Pkg Qty: 25
$186.00 pkg
| $7.44 ea
Technical Specifications
Agency Compliance
UL/FM
Material Grade/Class
316
Allowable Tension
1098 lb.
Meets/Exceeds
GSA Spec FF-S-325 Group VIII Type 1
Anchor Diameter
1/2 in.
Mfr. Part Number
1338SS6
Anchor Length
1-9/16 in.
Minimum Hole Depth
1-9/16 in.
Anchor Material
Stainless Steel
Pack Quantity
25
Anchor Thread Size
3/8 in.-16
Shipping Weight
1.63 lb.
Bolt Diameter
3/8 in.
Thread Depth
23/32 in.
Brand
SUP-R-DROP
Thread Size
3/8"-16
Drill Bit Size
1/2 in.
Ultimate Shear in 3000 PSI Concrete
3714 lb.
Drop-In Anchor Type
Non-Flange
Ultimate Shear in 4000 PSI Concrete
3714 lb.
Fastener Finish
Plain
Ultimate Tension in 3000 PSI Concrete
4391 lb.
Item
Drop-In Anchor
Ultimate Tension in 4000 PSI Concrete
4824 lb.
Material
316 Stainless Steel
Product Description
Drop-In Anchors, Tools, and Kits
- Drop-in anchor setting tool must be purchased separately (see table)
- For use in pipe hanging, mounting valve and pipe, machinery mounting, anchoring shelf, and insulation applications, in concrete materials or solid concrete base materials. Coil thread anchors are for forming.
- Meet U.S. Government G.S.A. FF-S-325 Group VIII, Type 1 standards, except Redhead meets
- A-A-55614 standard. UL and FM Listed.
- Note: For load capacities in structural lightweight aggregate concrete, refer to ICBO Report No. 1372. Safe working loads for single installations under static loading should not exceed 25% of the ultimate load conditions.
Item Barcode

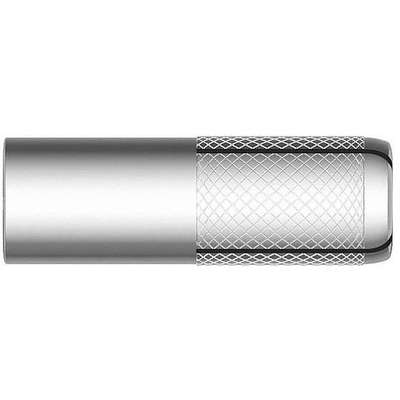

Drop-In Anchor,3/8-16x1-9/16in,
| Name | Item | Description | |
|---|---|---|---|
|
Grainger Dropship | 4KJA4 | Drop-In Anchor,3/8- |
|
UNSPSC CODES | 31161502 | |
|
VMRS (ATA) CODES | 053-006-009 | Drop-In Anchor,3/8- |
