CHICAGO-LATROBE

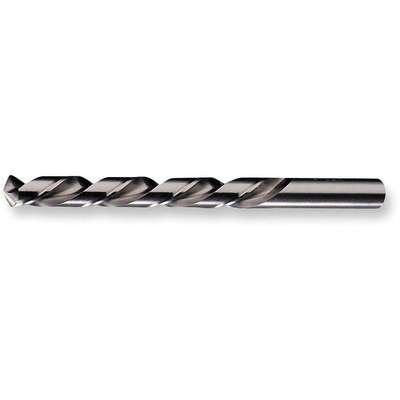

Left Hand Drill Bit, Jobber Length, Drill Bit Size 3/8", High Speed Steel, Bright (Uncoated) , List Number 150L

Hover over image to magnify
Jobber Bit,3/8 In,Left Hand,Hs
Jobber Bit,3/8 In,Left Hand,Hs
Left Hand Drill Bit, Jobber Length,  Drill Bit Size 3/8", High Speed Steel, Bright (Uncoated) , List Number 150L Video
Left Hand Drill Bit, Jobber Length,  Drill Bit Size 3/8", High Speed Steel, Bright (Uncoated) , List Number 150L Video

#918882-8 | Pkg Qty: 1

$22.01 pkg | $22.01 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
CHICAGO-LATROBE
Jobber Length Basic Material
High Speed Steel
Coolant Through
No
Left/Right Hand
Left Hand
Cutting Direction
Left
List Number
150L
Cutting Direction
Left Hand
Maximum Drilling Depth
1-1/2 in.
Decimal Equivalent
3/8
Mfr. Part Number
44424
Depth x Diameter Ratio
5xD
Number of Flutes
2
Dimension Type
Fractional Inch
Number of Pieces
1
Drill Bit Dimension Type
Fractional Inch
Overall Length
5 in.
Drill Bit Finish
Bright (Uncoated)
Pack Quantity
1
Drill Bit Material
High Speed Steel
Point Angle
118 deg.
Drill Bit Point Angle
118 deg.
Point Type
Conventional Point
Drill Bit Size
3/8 in.
Series
150L
Drill Point Length
0.1127 in.
Shank Diameter
3/8 in.
Finish
Bright
Shank Length
1-3/8 in.
Flute Length
3-5/8 in.
Shank Type
Straight
Flute Type
Spiral
Shipping Weight
0.11 lb.
Grade
General Purpose
Spiral Direction
Left Hand
Helix Angle
28
Type
Jobber Length Drill Bit
Item
Jobber Length Drill Bit
General
Application
For Alloy And Carbon Steel And Cast Iron
Finish - Machining
Bright (Uncoated)
Coolant Fed
Non-Coolant Through
Material - Machining
High Speed Steel
Depth:Dia. Ratio
4xD
Material Grade - Machining
General Purpose
Drill Bit Grouping
Individual
Measurement System
Fractional Inch
Drill Bit Point Type
Conventional Point
Primary Material Application ISO Code
K, P
Drill Diameter Tolerance
+0.0000 in /-0.0010 in
Shank Dia.
3/8 in
Drill Length Class
Jobber Length
Shank Type - Machining
Straight

Product Description

These drill bits have a bright finish that is not affected when the bits' cutting edges are resharpened. They also have spiral flutes that evacuate chips as the bits drill into a workpiece.
