STENNER

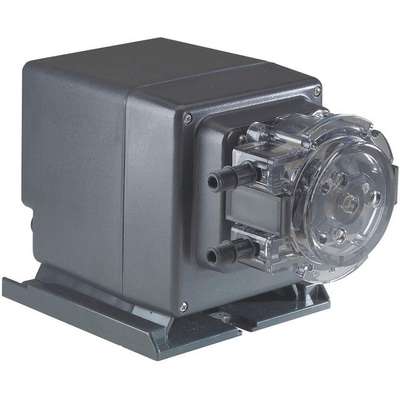

Peristaltic Chemical Metering Pump, Max. Flow Rate: 8.40 gph, Max. Pressure: 25 psi

Hover over image to magnify
Metering Pump,529.96 cc/Min.,
Metering Pump,529.96 cc/Min.,

#918792-3 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:

Technical Specifications

Key Specifications
Body Material
Polycarbonate
Motor HP
1/30
Brand
STENNER
Motor RPM
55
Chemical Metering Pump Type
Peristaltic
Number of Feeds
1
Cord Length
6 ft.
Pack Quantity
1
Flow Rate Output Control
Fixed
Phase
1
Head/Fitting Material
Polycarbonate, Polypropylene
Pump Type
Peristaltic
Height
6-13/64 in.
Reproducibility
+/-2%
Horsepower
1/30
Seals and O-Rings
Buna-N
Hz
60
Self-Priming
Yes
Item
Chemical Metering Pump
Shipping Weight
9.09 lb.
Length
10-13/64 in.
Suction Lift
25 ft.
Maximum Flow Rate
8.4 oz/min
Tubing Material
Santoprene
Maximum Pressure
25 psi
Voltage
120 VAC
Maximum Viscosity
1500 CPS
Width
5-29/32 in.
Mfr. Part Number
M051JG1
cc/Minimum
529.96
General
HP - Pumps
1/30 hp
Reproducibility - Pumps
+/-2.0%
Head and Fitting Material - Pumps
Polycarbonate/Polypropylene
Seals and O-Rings - Pumps
Buna-N
Max. Flow (gpd) - Pumps
94.50 gpd
Standards
cULus
Max. Pressure - Pumps
25 psi
Tubing Material - Peristaltic Pumps
Santoprene
Max. Viscosity - Pumps
1,500 cps
Voltage - Pumps
120V AC
Phase - Pumps
1
cc/Min.
529.96 cc/min

Product Description

Stenner M128 series peristaltic metering pump is designed to inject solutions, making it ideal to treat livestock water with sanitizers, medications, nutrients, and disinfectants. The compact, self priming pump (also called a medicator), injects solutions directly into the water line so they won't contact any moving parts and avoids fouling and water flow restrictions. This pump works efficiently without requiring the use of a water bypass or back pressure valve. Model is designed for easy tube removal and replacement.
