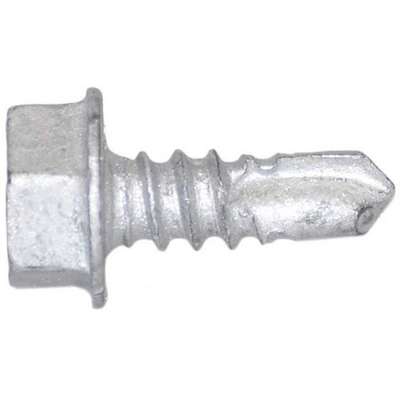

1/2" Steel Self Drilling Screw with Hex Washer Head Type and Climaseal Finish

Zoom Icon

#918611-5 | Pkg Qty: 500

$78.00 pkg | $0.16 ea
Item Number 918611-5
Scanner Description Drilling Screw,#10-16,1/2 In L,
Inventory Status Drop Ship Item
Weight 2.5 lb
Brand APPROVED SUPPLIER

Technical Specifications

Application
Attaches Steel to Steel. Attachment Range is .036 to .150 in.. Drill and Tap Capacity is .036 to .175 in.
Item
Self Drilling Screw
Basic Material
Steel
Length Under Head
1/2 in.
Brand
APPROVED SUPPLIER
Material
Steel
Drill Point Size
Teks 3
Meets/Exceeds
ICC ESR-1976
Drive Type
Hex
Mfg Part Number
1397000
Finish
Climaseal
Pack Quantity
500
Head Angle
90
Self Drilling Screw Head Type
Hex Washer Head
Head Color
Gray
System of Measurement
Fractional
Head Diameter
0.415 in.
Thread Size
#10-16
Head Height
0.19 in.
Type
Imperial
Hex Width
0.313 in.

Product Description

Self-Drilling Hex Washer Sheet Metal Screws

  • Package quantities are exact All meet SAE J78 standard
  • 1-pc., 1-side-installation fasteners have a drilling point tip that drills its own hole and forms its own internal mating threads. Climaseal® corrosion-resistant finish provides excellent resistance to most forms of abrasion and torque. Electro Zinc corrosion-resistant finish is applied to No. 36K129 with a process that conforms to ASTM B633 specifications. Gray Spex corrosion-resistant finish on No. 36K145 is an organic waterborne coating, applied with a state-of-the-art process that eliminates Phillips recess fill problems.
Item Barcode
9186115
  Name Item Description
Grainger Dropship Grainger Dropship 36K122 Drilling Screw,#10-16,
UNSPSC CODES UNSPSC CODES 31161507
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Drilling Screw,#10-16,
