DAYTON

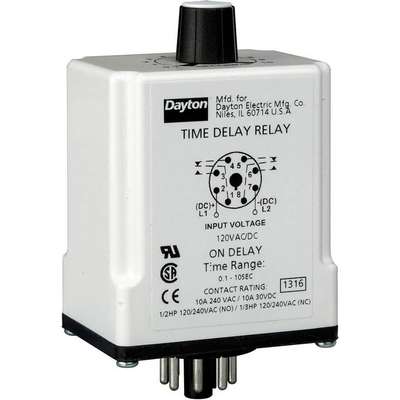

Dayton Single Function Time Delay Relay, 120VAC/DC Coil Volts, 10A Contact Amp Rating (Resistive), Contact
Hover over image to magnify
#918555-8 | Pkg Qty: 1
$43.00 pkg | $43.00 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 240 V
Maximum Time Setting
5 sec.
Adjustment Method
Potentiometer
Mfr. Part Number
1EGB4
Base Type
Octal
Minimum Time Setting
0.05 sec.
Body Depth
1.7 in.
Mounting
Plug In
Body Height
2.9 in.
Number of Contacts
2
Body Width
2.4 in.
Number of Functions
1
Brand
DAYTON
Number of Pins
8
Coil Rating
2VA
Number of Poles
2
Coil VA Rating
2
Operating Functions
1
Coil Volts
120 VAC/DC
Overall Height
3.1 in.
Contact Form
DPDT
Package Quantity
1
Contact Material
Silver Nickel
Pins
8
DC Contact Rating
10 A @ 30 V
Relay Power Consumption
2.5 VA, 2.0 W
Electrical Connection
Socket
Resistive Contact Amp Rating
10A
Function
On Delay
Shipping Weight
.3 lb.
Hz
50/60
Socket
5X852, 1EGP3, 1EGP5
Input Power Consumption
2.5 VA, 2.0 W
Socket Code
A
Input or Control Voltage
120 VAC/DC
Status Indicator
None
Item
Single Function Time Delay Relay
Type
Plug-In
General
AC Contact Rating - Relay
10A @ 240V
HP @ 240V
1/2
Adjustment Method - Timer
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Base Type - Plug In Relay
Octal
Max. Time Setting - Timer
5 sec
Body Depth - Relay
1.7 in
Min. Time Setting - Timer
0.05 sec
Body Height - Relay
2.9 in
Mounting - Relay
Plug In
Body Width - Relay
2.4 in
Number of Pins - Relay
8
Contact Form - Relay
DPDT
Overall Height - Relay
3.1 in
DC Contact Rating - Relay
10A @ 30V
Power Consumption - Relay
2 W, 2.5 VA
Function - Timing Relay
On Delay
Standards
UR, CSA, CE
HP @ 120V
1/3
Timing Relay Functionality
On Delay
Product Description
Dayton’s Time Delay Relay features an On Delay function with an adjustable timing range of 0.05-5 seconds, 120V AC/DC input voltage and 10A DPDT output contacts, utilizing an 8 pin octal socket.
