Plunger General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Vertical Movement

Plunger General Purpose Limit Switch; Location: Top, Contact Form: SPDT, Vertical Movement

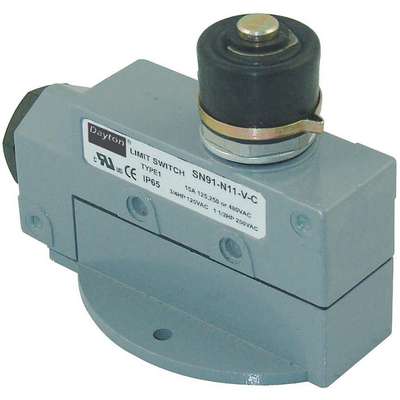

Enclosed Limit Switch
PI_Asset_1369534

#918298-4 | Pkg Qty: 1

$35.67 pkg | $35.67 ea
Item Number 918298-4
Scanner Description Enclosed Limit Switch
Inventory Status Drop Ship Item
Weight 0.5 lb
Brand DAYTON

Technical Specifications

AC Contact Rating
15A @ 480V
IP Rating
65
Actuator Location
Top
Item
General Purpose Limit Switch
Actuator Style
Plunger, Boot Sealed
Limit Switch Style
General Purpose Limit Switch
Amperage
15
Mfr. Part Number
12T918
Amps
15
Movement
Vertical
Basic Actuator Style
Plunger
NEMA Rating
3, 4, 13
Body Depth
1.01 in.
Operating Force
28 oz.
Body Height
1.76 in.
Operating Temperature Range
-14° to 176°F
Body Style
Miniature
Pack Quantity
1
Body Width
3.39 in.
Series
Dayton
Boot Sealed Actuator
Yes
Standards
UL, CSA, CE
Brand
DAYTON
Style
Sealed Top Plunger
Conduit Size
1/2 in. NPT
Threaded for Panel Mounting
No
Contact Form
SPDT
Travel
Maximum Pre-Travel 2mm, Over Travel 3mm
DC Contact Rating
15A @ 480V
Type
General Duty, Side Mounted
Depth
2.13 in.
Voltage
480 VAC/DC
Electrical Connection
Screw Terminals
Voltage Rating
480VAC/DC
Hazardous Location
No
Width
3.39 in.
Height
2.89 in.
Wiring Entry
1/2 in. NPT

Product Description

This enclosed limit switch feautres a plunger actuator, screw terminal connectors, and vertical movement.

Compliance & Restrictions

Prop 65 WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9182984
  Name Item Description
Grainger Dropship Grainger Dropship 12T918 Enclosed Limit Switch
UNSPSC CODES UNSPSC CODES 39122213
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Enclosed Limit Switch
