DWYER INSTRUMENTS

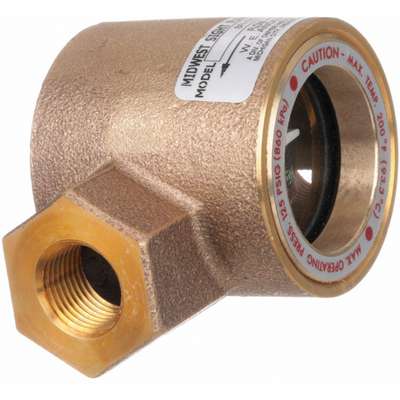

Bronze Window Sight Flow Indicator with Impeller, 1/2" Pipe Size, FNPT Connection Type

Hover over image to magnify
Single Sight Flow Indicator,
PI_Asset_1366424
Single Sight Flow Indicator,
PI_Asset_1366424

#918277-6 | Pkg Qty: 1

$290.67 pkg | $290.67 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Body Material
Bronze
Overall Length
4 in.
Brand
DWYER INSTRUMENTS
Package Quantity
1
Connection
FNPT
Pipe Size
1/2 in.
Item
Window Sight Flow Indicator with Impeller
Shipping Weight
2.21 lb.
Maximum Pressure
125 psi
Sight Diameter
2-1/32 in.
Mfr. Part Number
SFI-100-1/2
General
Number of Windows
1
Temp. Range
32 Degrees F to 200 Degrees F
Sight Material
Tempered Glass

Product Description

Sight Flow Indicators

  • Max. pressure: 125 psig temperature range: 32° to 200°F
  • Feature a rotating impeller and removable tempered glass window to ease maintenance. Buna-N and fiber seals. FNPT connections.
Item Barcode
9182776
Single Sight Flow Indicator,
 NameItemDescription
Grainger DropshipGrainger Dropship21XL61Single Sight Flow
UNSPSC CODESUNSPSC CODES41112510
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Single Sight Flow
