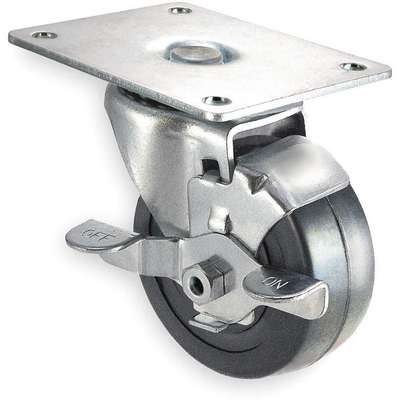

Standard Plate Caster, Swivel, Rubber, 100 lb., 2" Wheel Dia.

Hover over image to magnify
Swivel Plate Caster,Rubber,2
PI_Asset_947821
Swivel Plate Caster,Rubber,2
PI_Asset_947821

#918178-6 | Pkg Qty: 1

Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Standard Plate Caster,Swivel,
$4.74 pkg | $4.74 ea
Item: 942793-3
Pkg Qty: 1

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Frame Finish
Zinc Plated
Caster Brake Included
Yes
Inside Bolt Hole Spacing
15/16 in. x 2-1/8 in.
Caster Brake Type
Side Pedal Brake
Item
Standard Plate Caster
Caster Core Material
Rubber
Load Rating
100 lb.
Caster Group
Swivel Caster with Brake
Mfr. Part Number
1UKT5
Caster Load Rating Range
Light Duty
Non-Marking
No
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Caster Plate Size
1-7/8 in. x 2-5/8 in.
Number of Wheels
1
Caster Raceway
Double Ball
Outside Bolt Hole Spacing
15/16 in. x 2-1/8 in.
Caster Sub-Type
Swivel
Overall Height
2-5/8 in.
Caster Swivel Lock Type
No Lock Included
Package Quantity
1
Caster Temperature Range Available
No
Plate Caster Sub-Type
Swivel
Caster Wheel Bearings
Delrin
Plate Size
1-7/8 in. x 2-5/8 in.
Caster Wheel Shape
Standard
Shipping Weight
.45 lb.
Caster Wheel/Tread Material
Rubber
Wheel Color
Black
Core Color
Black
Wheel Diameter
2 in.
Durometer
65 Shore D
Wheel Width
7/8 in.
General
Caster Frame Material
Steel
Swivel Lock Type
No Lock Included
Caster Plate Thickness
5/64"
Swivel Raceway Type
Double Ball
Caster Product Group
Swivel Caster with Brake
Thread Guards
No
Caster Temp. Range Available
No
Tread Shape
Standard
Load Rating Range
0 to 299 lb
Wheel Bearing Type
Delrin
Mounting Bolt Dia.
1/4 in
Wheel Core Material
Rubber
Mounting Plate Bolt Hole Pattern
D
Wheel Dia.
2 in
Mounting Plate Size
1 7/8 in x 2 5/8 in
Wheel/Tread Hardness
65 Shore D
Mounting Plate Size (Bolt Hole Pattern)
1 7/8 in x 2 5/8 in (D)
Wheel/Tread Material
Rubber

Product Description

Light-duty standard plate casters are installed onto the bottom of carts, dollies, business machines, store fixtures, food-service equipment, and other equipment that will be moved manually at moderate speeds. These casters are best suited for applications where they will be transporting relatively light loads along smooth, flat surfaces and won't encounter shock loading, such as in offices, retail stores, schools, and government buildings. Sometimes known as institutional plate casters, these light-duty standard plate casters have zinc-plated steel frames.

Standard plate casters have kingpins that securely join the casters' mounting plates to their frames. They are used in nearly every industry and are the most common type of caster used for general purpose applications. The casters' mounting plates install onto the bottom of machinery, carts, or other equipment, and the casters allow the equipment to roll to reduce effort when moving or repositioning it. These casters are available in swivel and rigid versions. The swivel casters can rotate 360°, allowing equipment to change directions while rolling. The rigid casters roll in a straight line. Two rigid plate casters will often be paired with two swivel casters to allow the equipment to both maneuver around curves and obstacles and maintain a straight course while rolling.
