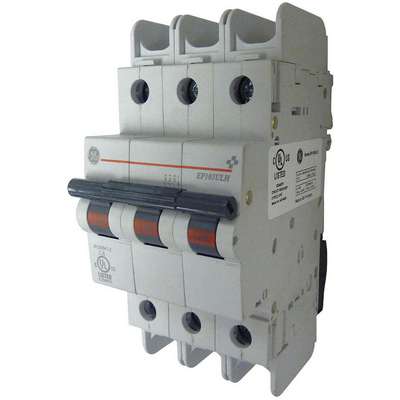

Miniature Circuit Breaker, 10 Amps, B Curve Type, Number of Poles: 3

Hover over image to magnify
Miniature Circuit Breaker, 10 Amps, B Curve Type, Number of Poles: 3

#918134-2 | Pkg Qty: 1

$192.00 pkg | $192.00 ea
Item Number 918134-2
Scanner Description Mini Circuit Breaker,10A,3
Inventory Status Drop Ship Item
Weight 0.95 lb
Brand GENERAL ELECTRIC

Technical Specifications

AC Voltage Rating
240VAC
Low Amp Trip Setting
40
Air @ 120 VAC
10kA
Maximum Air Rating
10 kA
Air @ 125 VDC
10kA
Maximum DC Voltage
110
Air @ 240 VAC
10kA
Maximum Wire Size
8 AWG
Air @ 277 VAC
10kA
Mfr. Part Number
EP103ULHB10
Air @ 48 VDC
10kA
Minimum Wire Size
14 AWG
Air @ 480 VAC
10.0kA
Mounting
DIN Rail
Air @ 600 VAC
10kA
Mounting Type
DIN
Air @ 65 VDC
10kA
Number of Poles
3
Amperage
10
Pack Quantity
1
Amps
10
Phase
3
Application
Branch Circuit Protection
Phase Connection
Any
Brand
GENERAL ELECTRIC
Series
EP100 ULH
Circuit Breaker Type
Miniature UL 489
Standards
cUL 489 Listed (File E256870), CE Marked
Curve Type
B
Switch Type
Toggle
DC Voltage Rating
110VDC
Terminal Connection
Screw Clamp
Depth
76 mm
Trip Type
Thermal Magnetic
High Amp Trip Setting
40
Type
Din Rail Mount
Instantaneous Trip
Fixed
Voltage
240 VAC
Item
Miniature Circuit Breaker
Width
54 mm
Length
86 mm

Product Description

Miniature Circuit Breakers

  • Magnetic trip Screw clamp terminals DIN-Rail mounted
  • B curve indicates magnetic trip between 3.2 and 4.8 times rated current. C curve indicates magnetic trip between 7 and 10 times rated current. D curve indicates magnetic trip between 10 and 14 times rated current.
  • UL Listed. UL 1077 Series are CSA Certified.
Item Barcode
9181342
  Name Item Description
Grainger Dropship Grainger Dropship 10K753 Mini Circuit Breaker,10A,
UNSPSC CODES UNSPSC CODES 39121601
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Mini Circuit Breaker,10A,
