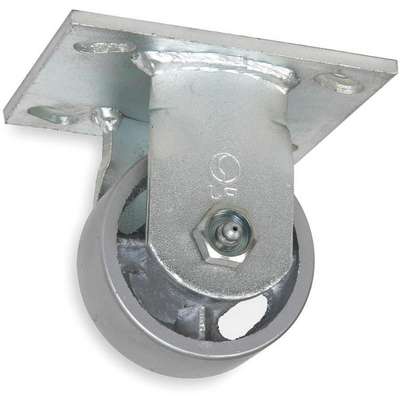

Standard Plate Caster, Rigid, Iron, 1000 lb., 5" Wheel Dia.

Standard Plate Caster, Rigid, Iron, 1000 lb., 5" Wheel Dia.
Rigid Plate Caster,Cast Irn,5
PI_Asset_1355392

#918108-6 | Pkg Qty: 1

$30.67 pkg | $30.67 ea
Item Number 918108-6
Scanner Description Rigid Plate Caster,Cast Irn,5
Inventory Status Drop Ship Item
Weight 7 lb
Brand APPROVED SUPPLIER

Technical Specifications

Brand
APPROVED SUPPLIER
Inside Bolt Hole Spacing
3 in. x 3 in.
Caster Brake Included
No
Item
Plate Caster
Caster Core Material
Cast Iron
Load Rating
1000 lb.
Caster Group
Rigid Caster
Mfr. Part Number
1NWL3
Caster Load Rating Range
Medium Duty
Number of Wheels
1
Caster Plate Hole Pattern
B
Outside Bolt Hole Spacing
2-5/8 in. x 3-5/8 in.
Caster Plate Size
4 in. x 4-1/2 in.
Overall Height
6-1/2 in.
Caster Swivel Lock Type
No Lock Included
Pack Quantity
1
Caster Temperature Range Available
No
Plate Caster Sub-Type
Rigid
Caster Wheel Bearings
Roller
Plate Size
4 in. x 4-1/2 in.
Caster Wheel Shape
Standard
Standards
ICWM & ISO 9001
Caster Wheel/Tread Material
Cast Iron
Wheel Color
Gray
Core Color
Gray
Wheel Color Family
Gray
Frame Finish
Zinc Plated
Wheel Diameter
5 in.
Includes
Spanner Bushing
Wheel Width
2 in.

Product Description

Medium-duty standard plate casters mount to the bottom of carts, dollies, platform trucks, tool boxes, storage racks, and other industrial equipment that will be moved manually at moderate speeds. They are suitable for transporting loads along smooth, flat surfaces in areas where the casters won't encounter shock loading, such as shops, docks, warehouses, waste-disposal areas, manufacturing plants, and other industrial settings. These casters have Zinc-Plated steel frames. Swivel versions of these casters have double ball swivel bearings, which are quieter and allow the caster to swivel more smoothly than roller bearings.

Item Barcode
9181086
  Name Item Description
Grainger Dropship Grainger Dropship 1NWL3 Rigid Plate Caster,Cast
UNSPSC CODES UNSPSC CODES 31162701
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Rigid Plate Caster,Cast
