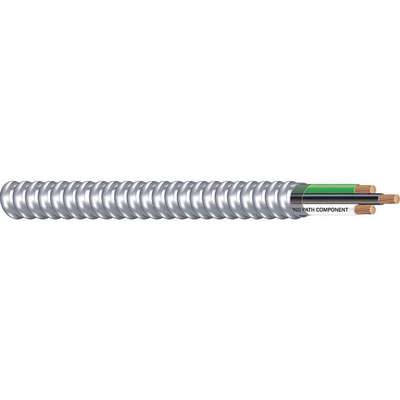

250 ft. Stranded Metal Clad; Conductors: 2 with Ground, 12 AWG Wire Size, Silver

Zoom Icon
Secondary Item Image
20KZ58_2

#918085-7 | Pkg Qty: 1

$225.68 pkg | $225.68 ea
Item Number 918085-7
Scanner Description Metl Clad,12/2 Awg,250 Ft.,20A,
Inventory Status Drop Ship Item
Weight 26.6 lb
Brand SOUTHWIRE COMPANY

Technical Specifications

Application
Indoor
Nominal Outside Diameter
0.494 in.
Brand
SOUTHWIRE COMPANY
Number of Conductors
2 with Ground
Cable Type - Wire/Cable
MC
Pack Quantity
1
Conductor Material
Soft Drawn Copper
Spool Length
250 ft.
Features
Southwire Armorlite® Type MC Cable, Dual Rated MC/FPLP, Green Insulated Grounding Conductor, Conductors are Cabled Together and A Binder Tape Bearing The Print Legend is Wrapped Around The Assembly, Aluminum Interlocking Armor Applied Over The Assembly
Standards
UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems
Indoor / Outdoor
Indoor
Stranded / Solid
Stranded
Item
Metal Clad Armored Cable
Temp. Range
-14° to 90°C Dry
Jacket Color
Silver
Temp. Rating
-14° to 90°C Dry
Jacket Material - Wire/Cable
Aluminum
Voltage (V)
600V
Max. Amps
20
Wire Color
Black, White, Green
Maximum Voltage
600
Wire Size - Wire/Cable
12 AWG
Mfg Part Number
69114701
Wire and Cable Item
Metal Clad Armored Cable

Product Description

Armored building cable is a collection of plastic-coated insulated wire bundled together and protected by a corrugated metal jacket (called a sheath or cord) that serves as a conduit and provides grounding. Also known as BX cable or metal-clad (MC) cable, armored cable prevents accidental penetration better than NM-B building cable, but it is heavier and harder to handle, rip back, and cut. It is often used in applications where cable will be exposed to mechanical or environmental damage under normal operating conditions, such as power circuits in industrial plants and commercial buildings.

Item Barcode
9180857
  Name Item Description
Grainger Dropship Grainger Dropship 20KZ58 Metl Clad,12/ 2 AWG,250 ft.
UNSPSC CODES UNSPSC CODES 26121636
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Metl Clad,12/ 2 AWG,250 ft.
