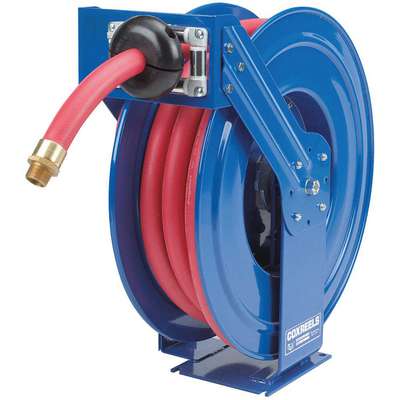

1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure

Hover over image to magnify
Hose Reel,General, Industrial,
PI_Asset_968679
PI_Asset_968680
PI_Asset_968681
PI_Asset_968682
PI_Asset_968683
PI_Asset_968684
PI_Asset_968685
Hose Reel,General, Industrial,
PI_Asset_968679
PI_Asset_968680
PI_Asset_968681
PI_Asset_968682
PI_Asset_968683
PI_Asset_968684
PI_Asset_968685
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video
1", 35 ft. Spring Return Hose Reel, 300 psi Max. Pressure Video

#918074-2 | Pkg Qty: 1

$1,086.06 pkg | $1,086.06 ea
Item Number 918074-2
Scanner Description Hose Reel,General, Industrial,
Inventory Status Drop Ship Item
Weight 96 lb
Brand COXREELS

Technical Specifications

Bearings
Permanently Lubricated
Item
Spring Return Hose Reel
Brand
COXREELS
Latch
Locking
Drive Type
Spring Return
Maximum Pressure
300 psi
Enclosed Reel
No
Maximum Temperature
150 deg. F
Finish
Powder Coated
Mfr. Part Number
TSHF-N-635
Hose Ends
1 in. (M)NPT
Mounting
Floor, Wall, Ceiling, Bench and Vehicles
Hose Included
Yes
Overall Height
25-1/2 in.
Hose Inside Diameter
1 in.
Overall Length
23 in.
Hose Length
35 ft.
Overall Width
10 in.
Hose Reel Group
Spring Return Hose Reels
Pack Quantity
1
Hose Reel Media
Fuel
Reel Inlet
1 in. (F)NPT
Hose Reel Rating
Heavy Duty
Seal Type
Nitrile
Housing Material
Steel
Type
Dual Pedestal

Product Description

Truck-Mount Heavy-Duty Fueling Reels

  • Max, pressure: 300 psi Permanently lubricated precision bearings Nonsparking locking mechanism Chip-resistant, powder-coated finish Fuel hose included Auto-retractable spring-driven hose reels have CNC spun and ribbed discs with rolled edges, heavy-gauge 1/4" steel base, and a solid steel axle. External fluid path with 1" solid brass full-flow swivel on 3/4" models, nickel-plated on 1" models, and nitrile seals on all models. Dual-pedestal reel and Super Hub™ system provides triple axle support to reduce vibration and strengthen reel structure. Use to transfer nonaromatic fuels, including diesel, kerosene, fuel oil, and heating oil.
Item Barcode
9180742
  Name Item Description
Grainger Dropship Grainger Dropship 10C509 Hose Reel, General,
UNSPSC CODES UNSPSC CODES 40142121
VMRS (ATA) CODES VMRS (ATA) CODES 053-006-009 Hose Reel, General,
