SPEEDAIRE

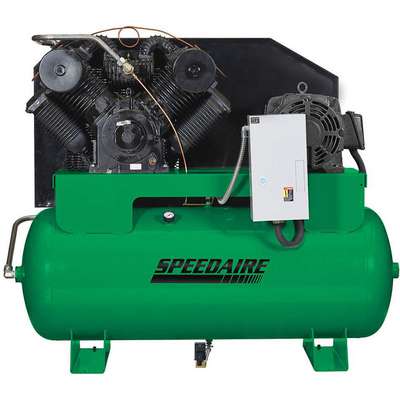

3 Phase - Electrical Horizontal Tank Mounted 25.0HP - Air Compressor Stationary Air Compressor, 120
#918066-9 | Pkg Qty: 1
Alternate products displayed may not be identical in style or function to original selection.
Alternate Products
Technical Specifications
Key Specifications
(F)NPT Outlet
1 in.
Maximum Pressure
175 psi
Air Consumption
scfm
Mfr. Part Number
35WC72
Amperage
66.1-59.8/29.9 A
Number of Stages
2
Brand
SPEEDAIRE
Overall Height
64 in.
Compressor Package Type
Fully Packaged
Overall Length
72
Compressor Type
Tank Mounted
Overall Width
38 in.
Control
Pressure Switch
Pack Quantity
1
Cylinder Material
Cast Iron
Phase
3
Enclosure
Open Drip Proof
Pump Location
Tank Mounted
Finish
Powder Coated
Pump RPM
700
Free Air CFM @ Max Pressure
84
Shipping Weight
1931 lb.
Horsepower
25
Tank Size
120 gal.
Hz
60
Tank Style
Horizontal
Input Voltage
208 to 240 VAC, 480 VAC
Tank Type
Horizontal
Item
Electric Air Compressor
Voltage
208-230/460
Lubrication Type
Splash Lubricated
General
ASME Tank
Yes
On Pressure Switch Setting
135
Free Air CFM @ Max. Pressure - Air Compressor
84 cfm
Phase - Electrical
3
HP
25
Pump Location - Air Compressor
Tank Mounted
HP - Air Compressor
25.0 hp
Pump Oil Capacity
6 qt
Input Voltage - Air Compressor
208 to 230V AC, 460V AC
Standards
ASME
Lubrication Type - Air compressor
Splash Lubricated
Style - Air Compressor
Simplex
Max. Pressure - Air Compressor
175 psi
Tank Size - Air Compressor
120 gal
Number of Stages - Air Compressor
2
Tank Style - Air Compressor
Horizontal
Off Pressure Switch Setting
175
dBA @ 3 Feet
95
Product Description
The Speedaire® electric air compressor is an oil-lubricated reciprocating compressor. Features include an air filter, tank pressure gauge, check valve, after cooler, belt guard, magnetic starter, pressure switch, and automatic tank drain.
