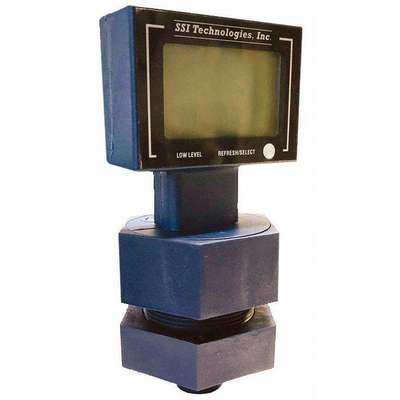

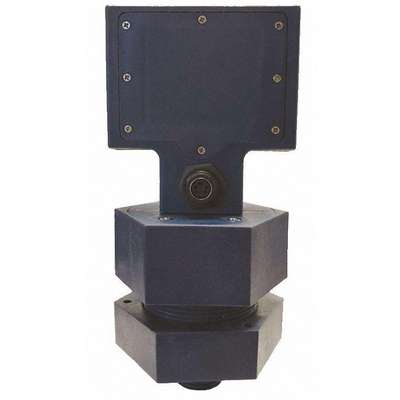

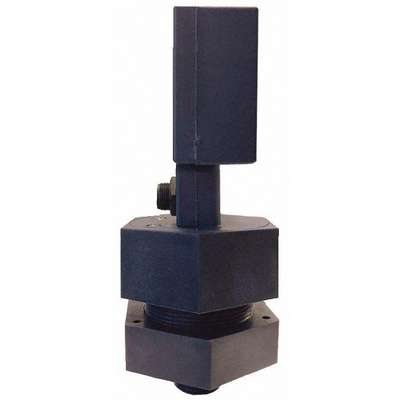

Ssi Level Gauge: For 32 in Container Dp, 2 in, 18 to 26V DC, For Drums For Container, Drums, 0.5 gal

Hover over image to magnify
Level Gauge,55 Gallon Drums -
PI_Asset_979967
PI_Asset_979968
PI_Asset_979969
Level Gauge,55 Gallon Drums -
PI_Asset_979967
PI_Asset_979968
PI_Asset_979969

#918049-3 | Pkg Qty: 1

$289.98 pkg | $289.98 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
SSI
Mfr. Warranty Length
1 yr.
Connection Size
3/4 in. NPS or 2 in. NPT
Package Quantity
1
Item
Level Gauge
Shipping Weight
1.5 lb.
Mfr. Part Number
DFT-220
General
Assembly Nut Material
Polybutylene Terephthalate
Increment of Variation
0.5 gal
Bushing Material
Polybutylene Terephthalate
Manufacturer Warranty Length
1 yr
Container Compatibility
15 gal Drums, 30 gal Drums, 55 gal Drums
Maximum Temperature
122 °F
For Container Capacity
15 gal, 30 gal, 55 gal
Minimum Temperature
32 °F
For Container Depth
32 in
Mounting Orientation
Vertical
For Container Style
For Drums
Operating Temp.
0° to 120°F
For Container Type
Drums
Operating Voltage
18 to 26V DC
For Liquid Type
Diesel, Hydraulic Fluid, Motor Oil, Waste Water, Water
Pipe Size
2 in
For Use With
55, 30, 15 Gallon Drums
Temp. Range
0° to 120°F
Includes

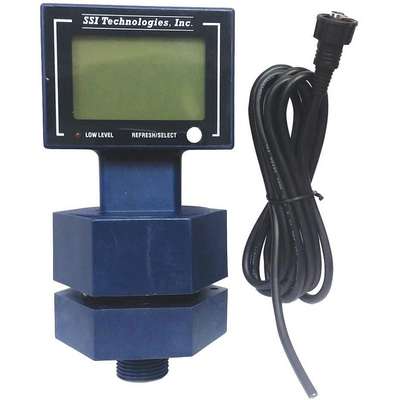

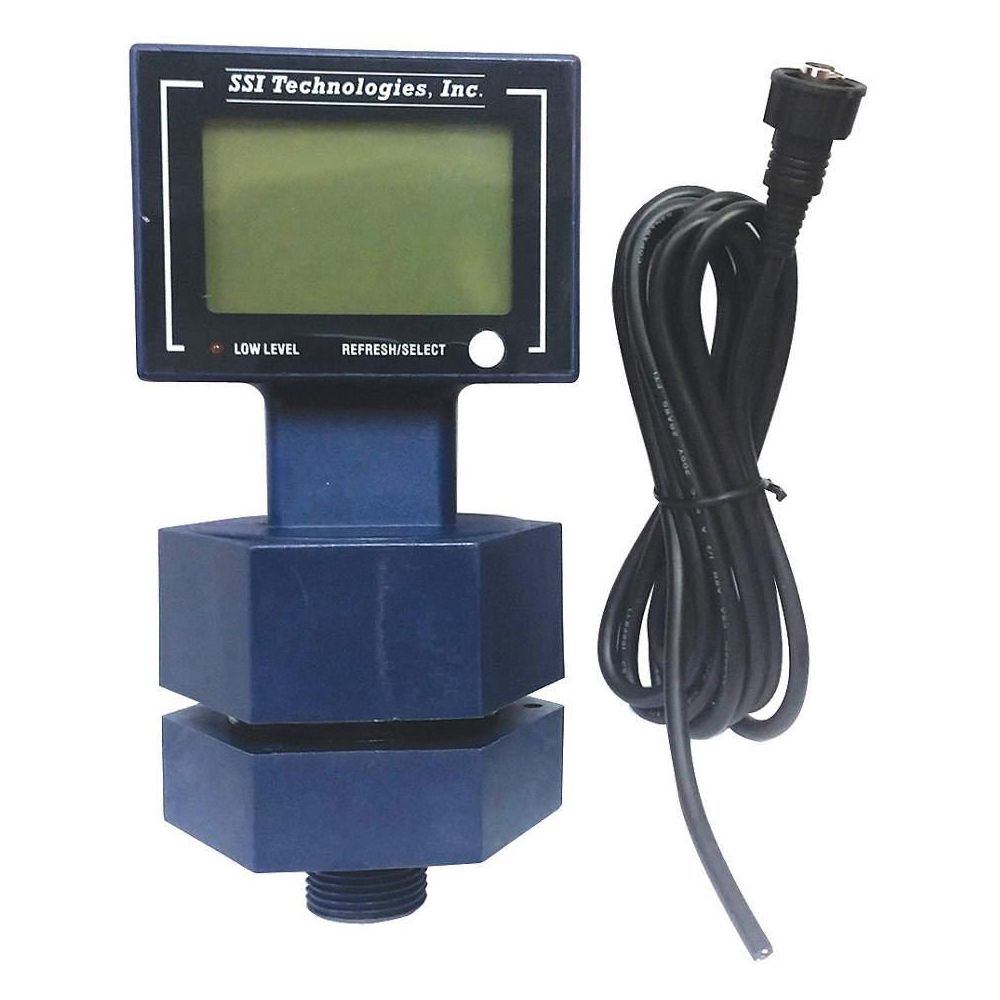

3 ft Cable for 4/20mA Signal, 3/4 in NPS Adapter
Units of Measurement
Inches

Product Description

Level Gauge, Ultrasonic, Drum Capacity 55 gal, Connection Size 3/4 in NPS or 2 in NPT, Bushing Material Polybutylene Terephthalate, Assembly Nut Material Polybutylene Terephthalate, Material Polybutylene Terephthalate, Operating Temp. 0 Degrees to 120 Degrees F, Temp. Range 0 Degrees to 120 Degrees F, For Use With 15 Gallon Drums, 30 Gallon Drums, 55 Gallon Drums, Special Features Red LED Low Level Warning Light, Line Powered (18-26 V DC Needed)

Item Barcode
9180493
Level Gauge,55 Gallon Drums -
 NameItemDescription
Grainger DropshipGrainger Dropship45MU03Level Gauge, 55 Gallon
UNSPSC CODESUNSPSC CODES41111938
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Level Gauge, 55 Gallon
