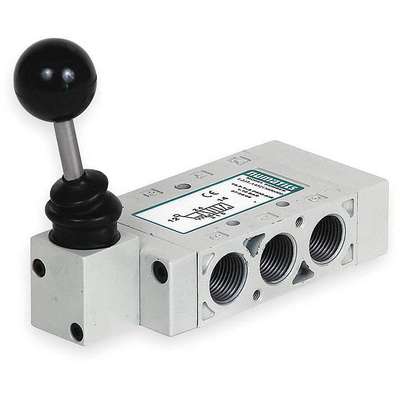

3/8" Manual Air Control Valve with 4-Way, 2-Position Air Valve Type

Zoom Icon

3/8" Manual Air Control Valve with 4-Way, 2-Position Air Valve Type

#918022-5 | Pkg Qty: 1
$244.00 pkg | $244.00 ea
Item Number 918022-5
Scanner Description Manual Air Control Valve,4-Way,
Inventory Status Drop Ship Item
Weight 0.82 lb
Brand NUMATICS

Technical Specifications

Actuator/Return
Lever/Spring
Number of Positions
2
Air Consumption
scfm
Overall Height
2 in.
Body
Aluminum
Overall Length
5-3/16 in.
Body Material
Aluminum
Overall Width
3-15/16 in.
Brand
NUMATICS
Pack Quantity
1
CFM
78
Pipe Size
3/8 in.
Characteristics
Plumbed as Normally Passing, Non-Passing or Multi-purpose
Port Size (In.)
3/8 NPT
Coefficient of Volume
1.7
Series
L2
Connection
NPT
Type
Lever
Cv
1.7
Valve Actuator/Return
Lever / Spring
For Use With
General Pneumatic Applications
Valve Max. Pressure Rating
150 psi
Item
Manual Air Control Valve
Valve Port Size
3/8 in.
Max. CFM - Valves
78
Valve Temp. Range
-10° to 150°F
Maximum Pressure
150 psi
Valve Ways And Positions
4-Way/2-Position
Mfg Part Number
L23LA452O000000
Width
3-15/16 in.

Product Description

Manual

  • 1.7 Cv Lever-operated valves provide high flow; balanced spool-and-sleeve design provides easy operation, regardless of system pressure. Valves operate with lubricated or nonlubricated compressed air and are easily plumbed into the system. L Series and PA55 Pilot and Manual Air Control Valves
  • Max. operating pressure: 150 psi
Item Barcode
9180225
  Name Item Description
Grainger Dropship Grainger Dropship 3JCT9 Manual Air Control
UNSPSC CODES UNSPSC CODES 40141603
VMRS (ATA) CODES VMRS (ATA) CODES 053-008-006 Manual Air Control
