LINCOLN ELECTRIC

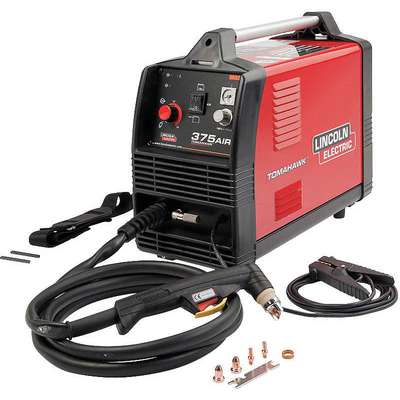

Lincoln Electric Plasma Cutter and Air Compressor, Tomahawk 375 Air Series, Input Voltage: 208/230 V

Hover over image to magnify
Plasma Cutter,10-25A,Inverter,
PI_Asset_974887
PI_Asset_974888
PI_Asset_974889
PI_Asset_974890
Plasma Cutter,10-25A,Inverter,
PI_Asset_974887
PI_Asset_974888
PI_Asset_974889
PI_Asset_974890

#918010 | Pkg Qty: 1

$2,392.16 pkg | $2,392.16 ea

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications
Brand
LINCOLN ELECTRIC
Input Voltage
208 VAC, 230 VAC
Cable Length
10 ft.
Item
Plasma Cutter with Built-In Air Compressor
Cutting Capacity
1/2 in.
Mfr. Part Number
K2806-1
Design
Inverter
OCV
460VDC
Duty Cycle
100 %
PSI
70
Duty Cycle
1
Package Quantity
1
For Material Type
Aluminum, Brass, Copper, Mild Steel, Stainless Steel
Rated Output
2/5 A
For Maximum Material Thickness
1/2 in.
Series
Tomahawk 375 Air
For Minimum Material Thickness
5/16 in.
Shipping Weight
50.8 lb.
Input
21.7 A
General
Application
Metal Cutting
Open Circuit Voltage
460 V DC
Cutting Cable Length
10 ft
Overall Depth (In.)
18.9 in
Cutting Capacity (In.)
1/2 in
Overall Height (In.)
15.2 in
Cutting Configuration
Plasma Cutting
Overall Width (In.)
8 1/2 in
Effective Input Current
21.7 A @ 208/230 V (Single-Phase)
Plasma Cutter Model
K2806-1
Ground Cord Length
10 ft
Plasma Cutter Type
Plasma Cutter with Built-In Air Compressor
Includes
Consumables Kit, LC25 Hand Torch with 10 ft Cable, Work Clamp & Cable
Plasma Cutting Minimum Output Current
10 A
Input (Amps)
21.7A
Plasma Cutting Output @ Duty Cycle
13 A @ 85.2 V, 100%, 18 A @ 87.2 V, 60%, 25 A @ 90 V, 35%
Input Voltage (Nominal)
208V
Plasma Gas Type
Air
Max. Amperage Range
Less than 50 A
Plasma Torch
10 ft Handheld
Max. Input Current
21.7 A @ 208/230 V (Single-Phase)
Plasma Torch Type
Handheld
Maximum Output Current
25 A
Rated Output at Duty Cycle
13 A @ 100%, 18 A @ 60%
Maximum Pressure - Air Compressor
80 psi
Required Air Flow
2.1 cfm

Product Description

Continuous Output Control, Engine Drive Compatible, Front Panel Purge Control, Touch Start System
