REELCRAFT

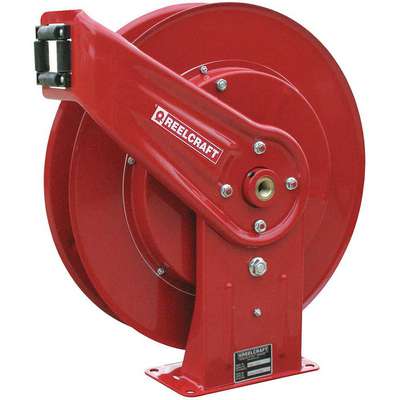

1/2", 50 ft. Spring Return Hose Reel, 500 psi Max. Pressure

Hover over image to magnify
Hose Reel,1/2in. Dia.,50 Ft.,
Hose Reel,1/2in. Dia.,50 Ft.,
1/2", 50 ft. Spring Return Hose Reel, 500 psi Max. Pressure Video

#917867-3 | Pkg Qty: 1

Shop Category
Alternate products displayed may not be identical in style or function to original selection.
No alternate products are currently available
See more options:
Shop All Products

Technical Specifications

Key Specifications
Bearings
Permanently Lubricated
Latch
Locking
Brand
REELCRAFT
Maximum Pressure
300 psi
Drive Type
Spring Return
Maximum Temperature
210 deg. F
Enclosed
No
Mfr. Part Number
7800 OLB
Enclosed Reel
No
Mounting Location Type
Bench, Ceiling, Floor, Truck, Wall
Finish
Powder Coated
Number of Guide Arms
Single Arm
Hose Capacity
50 ft. (1/2 in I.D.)
Overall Height
20-1/4 in.
Hose Ends
1/2 in. (F)NPT
Overall Length
19 in.
Hose Included
No
Overall Width
7 in.
Hose Inside Diameter
1/2 in.
Package Quantity
1
Hose Length
50 ft.
Pedestal Type
Single Pedestal
Hose Reel Group
Spring Return Hose Reels
Reel Inlet
1/2 in. (F)NPT
Hose Reel Media
Mild Chemical
Reel Material
Steel
Hose Reel Rating
Heavy Duty
Seal Type
Nitrile
Housing Material
Steel
Shipping Weight
39.7 lb.
Includes Hose
No
Speed Limited Retraction
No
Item
Spring Return Hose Reel
General
Base Motion Type
Stationary
Mount Base Width
5 in
Bearing Construction
Permanently Lubricated
Mount Hole Diameter
1/2 in
Corrosion-Resistant
Yes
Mounting Hole Center to Center Height
7 7/8 in
Drive Type - Hose Reels
Spring Return
Mounting Hole Center to Center Width
3 7/8 in
Fasteners Included
No
Number of Mount Holes
4
Features
Heavy Duty
Reel Finish
Powder Coated
Finish - Hose Reels
Powder Coated
Swivel Inlet Gender
Female
For Dual Hose
No
Swivel Inlet Size
1/2 in
Hose Inside Dia.
1/2 in
Swivel Inlet Thread Size
1/2 in - 14
Hose Outlet
1/2 in (F)NPT
Swivel Inlet Type
NPT
Hose Reel Primary Application
Air, Water
Swivel Material
Stainless Steel
Hose Reel Product Group
Spring Return Hose Reel
Swivel Outlet Gender
Male
Hose Reel Type
Free Standing Hose Reel, Vehicle, Wall Mount Hose Reel
Swivel Outlet Size
3/4 in
Includes Leader Hose
No
Swivel Outlet Thread Size
3/4 in - 16
Media - Hose Reels
Mild Chemical
Swivel Outlet Type
UNF
Mount Base Height
9 in
Twin Hose Compatible
No

Product Description

Standard air or water spring-return hose reels are single-pedestal, low-pressure (up to 500 psi) hose reels that include standard low-pressure hose for air or water service only. These reels mount to the floor, wall, or ceiling, and include an adjustable guide arm. Standard air/water hose reels are used with air or water hoses for pneumatic tools, in service centers, and at construction sites.
